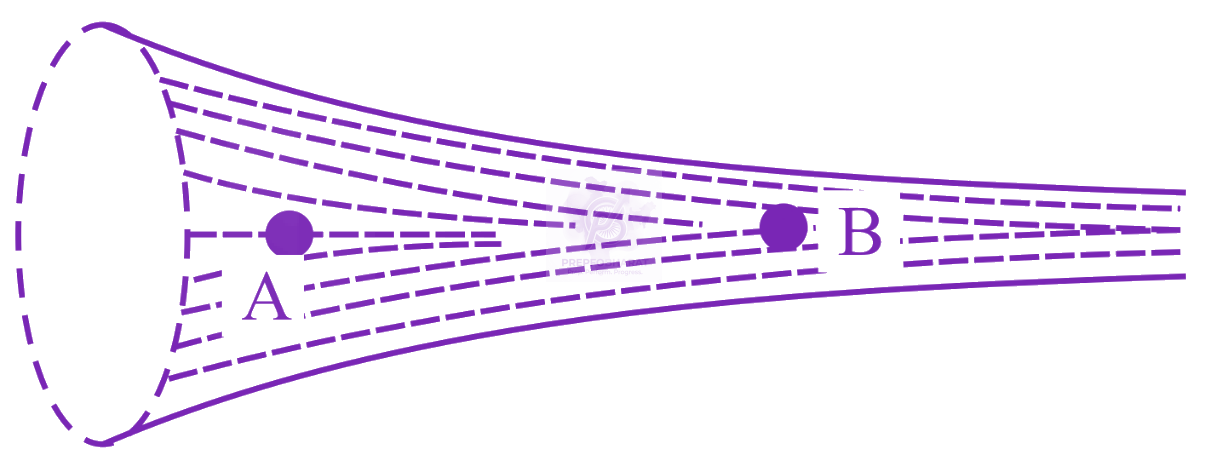

![JEE Main 2023 Physics, Mechanical Properties of Fluids — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Mechanical_Properties_of_Fluids/648b5a71417cc3fb48d6865d/question_1__q_648b5a71417cc3fb48d6865d__cdn-question-pool.getmarks.app__a528e366-fdce-4841-b6ea-3e4d9f760505__84f58b0b2c_final_ppt_sync.png) The figure shows a liquid of given density flowing steadily in horizontal tube of varying cross-section. Cross-sectional areas at $A$ is $1.5{\mathrm{cm}}^{2},$ and $B$ is $25{\mathrm{mm}}^{2},$ if the speed of liquid at $B$ is $60\mathrm{cm}{s}^{-1}$ then $({P}_{A}–{P}_{B})$ is (Given ${P}_{A}$ and ${P}_{B}$ are liquid pressures at $A$ and $B$ points. Density $\rho =1000\mathrm{kg}{m}^{-3}$ $A$ and $B$ are on the axis of tube)

JEE Main 2023 Physics, Mechanical Properties… - JEE Main 2023 Physics PYQ

JEE Main 2023 — Physics Mechanics

2023mcqeasy

JEE Main 2023 Physics, Mechanical Properties of Fluids — question figure

The figure shows a liquid of given density flowing steadily in horizontal tube of varying cross-section. Cross-sectional areas at $A$ is $1.5{\mathrm{cm}}^{2},$ and $B$ is $25{\mathrm{mm}}^{2},$ if the speed of liquid at $B$ is $60\mathrm{cm}{s}^{-1}$ then $({P}_{A}–{P}_{B})$ is

(Given ${P}_{A}$ and ${P}_{B}$ are liquid pressures at $A$ and $B$ points.

Density $\rho =1000\mathrm{kg}{m}^{-3}$

$A$ and $B$ are on the axis of tube)

Official previous-year question

Held on 13 Apr 2023 · Verified 6 Jul 2026.

Options

A
$135Pa$
B
$27Pa$
C
$175Pa$
D
$36Pa$

Did you get this right?

Solution

Using Bernoulli's theorem,

${P}_{A}+\frac{1}{2}\rho {V}_{A}^{2}={P}_{B}+\frac{1}{2}\rho {V}_{B}^{2}...(i)$

Using equation of continuity,

${A}_{A}{V}_{A}={A}_{B}{V}_{B}$

So, $1.5\times {10}^{-4}\times {V}_{A}=25\times {10}^{-6}\times {V}_{B}$

${V}_{A}=\frac{25\times {10}^{-6}}{1.5\times {10}^{-4}}\times 0.6$

$=\frac{1}{10}m{s}^{-1}$

Substituting in equation (i)

$\Rightarrow {P}_{A}-{P}_{B}=\frac{1000}{2}[0.{6}^{2}-0.{1}^{2}]=\frac{1000}{2}\times 0.7\times 0.5$

$=175Pa$
