We have, ICM=21MR2
Since AB is parallel to diameter and at a distance of 32R from it, using parallel axis theorem,
IAB=2mR2+m(32R)2=1817mR2
Thus, the ratio is
∴ICMIAB=21MR21817MR2=917
Thus, x=17
JEE Main 2023 — Physics Mechanics

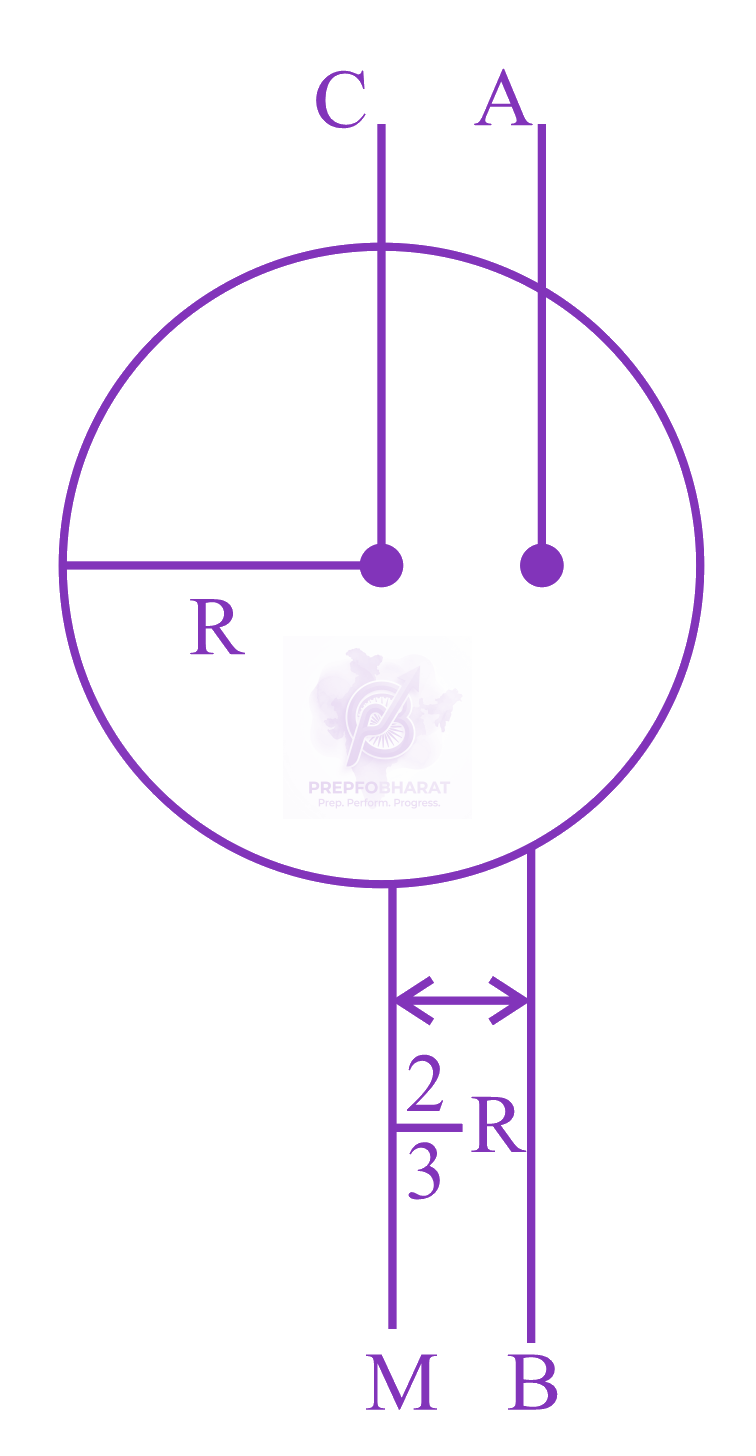

ICM is moment of inertia of a circular disc about an axis (CM) passing through its center and perpendicular to the plane of disc. IAB is its moment of inertia about an axis AB perpendicular to plane and parallel to axis CM at a distance 32R from center, where R is the radius of the disc. The ratio of IAB and ICM is x:9. The value of x is ______.

Held on 25 Jan 2023 · Verified 6 Jul 2026.
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
If $\epsilon, E$ and $t$ represent the free space permittivity, electric field and time respectively, then the unit of $\frac{\epsilon E}{t}$ will be :
When a part of a straight capillary tube is placed vertically in a liquid, the liquid raises upto certain height $h$. If the inner radius of the capillary tube, density of the liquid and surface tension of the liquid decrease by $1 \%$ each, then the height of the liquid in the tube will change by $\%$.
The velocity of a particle is given as $\vec{v} = -x\hat{i} + 2y\hat{j} - z\hat{k}$ m/s. The magnitude of acceleration at point $(1, 2, 4)$ is _______ m/s$^2$.
Suppose there is a uniform circular disc of mass $M \mathrm{~kg}$ and radius $r \mathrm{~m}$ shown in figure. The shaded regions are cut out from the disc. The moment of inertia of the remainder about the axis $A$ of the disc is given by $\frac{x}{256} M r^{2}$. The value of $x$ is $\_\_\_\_$.
A soap bubble of surface tension $0.04 \mathrm{~N} / \mathrm{m}$ is blown to a diameter of 7 cm. If $(15000-x) \mu \mathrm{J}$ of work is done in blowing it further to make its diameter 14 cm, then the value of $x$ is $\_\_\_\_$. ($\pi=22 / 7$)
