Consider a block kept on an inclined plane (inclined at $45^{\circ}$) as shown in the figure. If the force required to just push it up the incline is $2$ times the force required to just prevent it from sliding down, the coefficient of friction between the block and inclined plane $(\mu )$ is equal to : ![JEE Main 2023 Physics, Laws of Motion — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Laws_of_Motion/648b5a6f417cc3fb48d680be/question_1__q_648b5a6f417cc3fb48d680be__cdn-question-pool.getmarks.app__1973720d-453b-478c-86d0-f14845e7a8f7-9894326__15a9f24339_final_ppt_sync.png).

Consider a block kept on an… - JEE Main 2023 Physics PYQ

JEE Main 2023 — Physics Mechanics

2023mcqmedium

Consider a block kept on an inclined plane (inclined at $45^{\circ}$ ) as shown in the figure. If the force required to just push it up the incline is $2$ times the force required to just prevent it from sliding down, the coefficient of friction between the block and inclined plane $(\mu )$ is equal to :

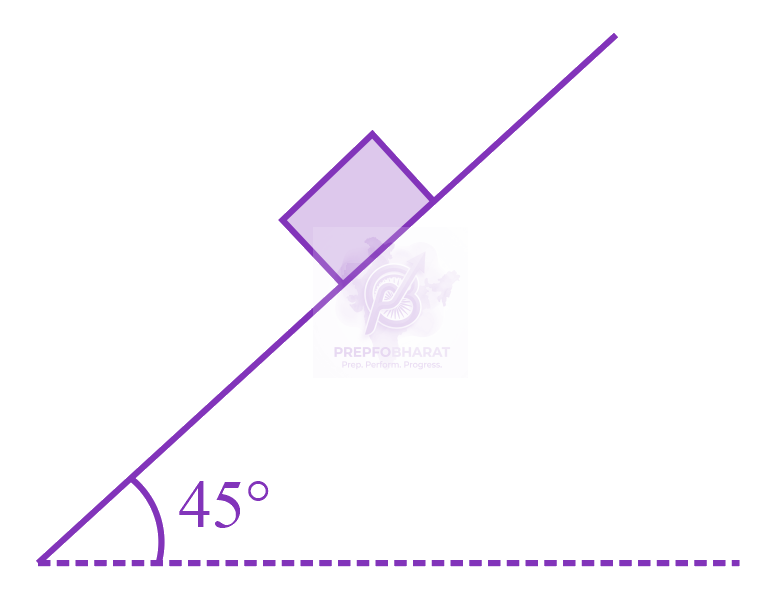

JEE Main 2023 Physics, Laws of Motion — question figure .

Official previous-year question

Held on 25 Jan 2023 · Verified 6 Jul 2026.

Options

A
$0.33$
B
$0.60$
C
$0.25$
D
$0.50$

Did you get this right?

Solution

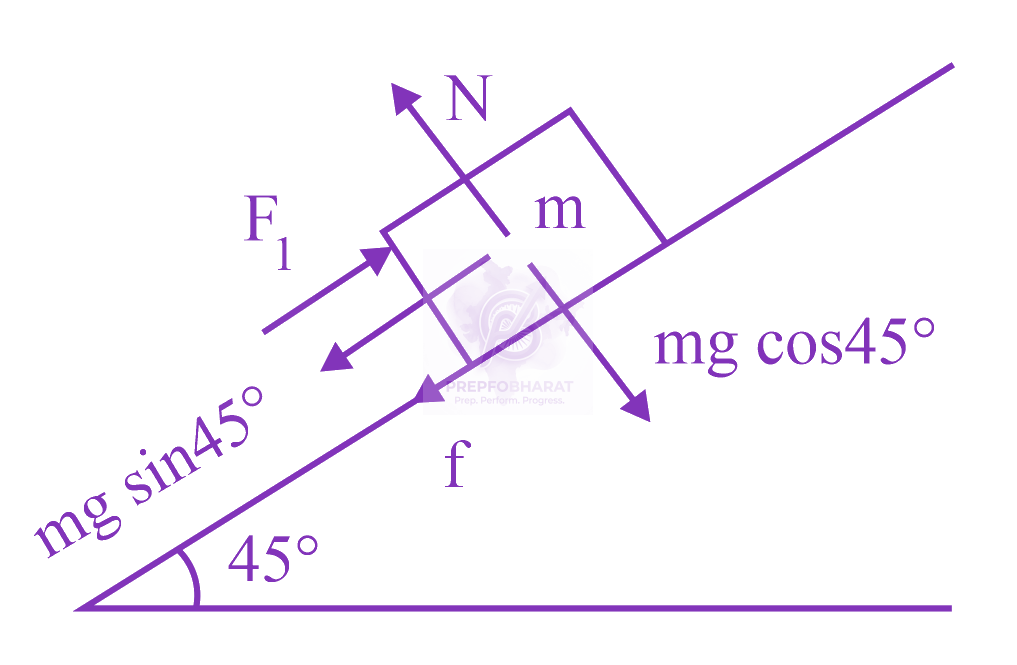

JEE Main 2023 Physics, Laws of Motion — solution figure 1

The forces acting on block is shown in above figure.

Here, normal force, $N=mg\mathrm{cos}45^{\circ}$ and frictional force, $f=\mu N$ .

Balancing the force along incline, we have

${F}_{1}=mg\mathrm{sin}45^{\circ}+f=mg\mathrm{sin}45^{\circ}+\mu N$

$\Rightarrow {F}_{1}=\frac{mg}{\sqrt{2}}+\mu mg\mathrm{cos}45^{\circ}$

$\Rightarrow {F}_{1}=\frac{mg}{\sqrt{2}}(1+\mu )$

Now, the forces acting on block to just push it up on inclined plane is shown below.

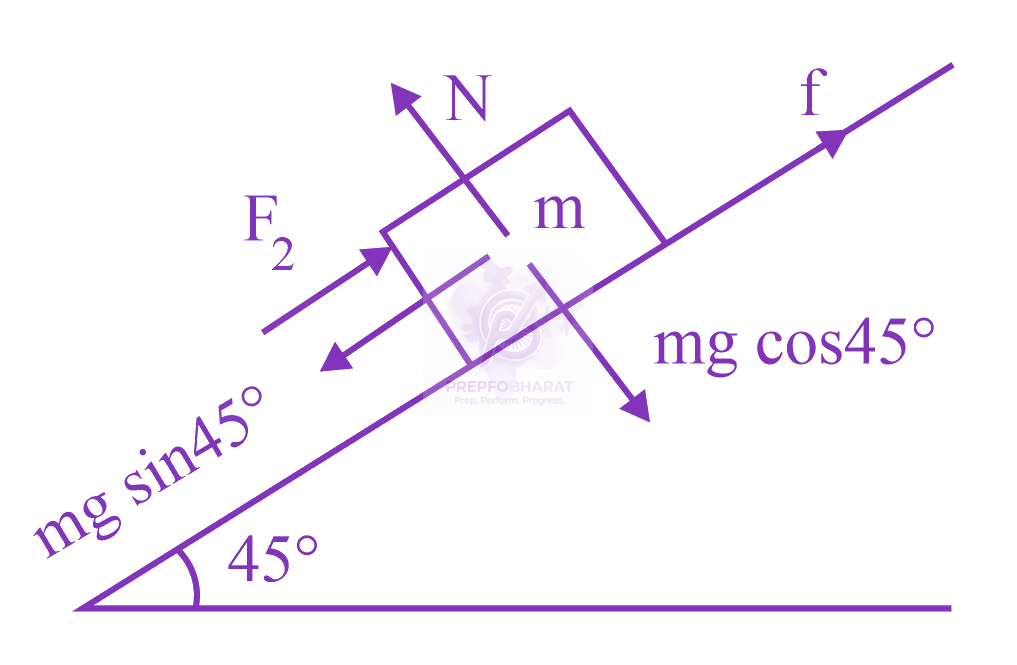

JEE Main 2023 Physics, Laws of Motion — solution figure 2

Balancing the force along incline, we have

${F}_{2}=mg\mathrm{sin}45^{\circ}-f=mg\mathrm{sin}45^{\circ}-\mu N$

$=\frac{mg}{\sqrt{2}}(1-\mu )$

Given, ${F}_{1}=2{F}_{2}$

$\Rightarrow \frac{mg}{\sqrt{2}}(1+\mu )=2\frac{mg}{\sqrt{2}}(1-\mu )$

$\Rightarrow 1+\mu =2-2\mu$

$\Rightarrow \mu =\frac{1}{3}=0.33$
