From equation of continuity,
av1=2av2⇒v2=2v1
From Bernoulli's theorem,
P1+21ρv12+ρgh1=P2+21ρv22+ρgh2⇒P1−P2=ρ[g(h2−h1)+21(v22−v12)]⇒4100=800[10(−1)+213v12]⇒8004100+10=23v12⇒v1=4×3121=6363ms−1
Therefore, x=363.
An ideal fluid of density 800 kg m^-3, flows smoothly through a bent pipe (as shown in figure) that tapers in cross-sectional area from a to a 2. The…
JEE Main 2022 — Physics Mechanics
2022integermedium

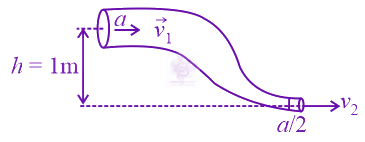

An ideal fluid of density 800kgm−3, flows smoothly through a bent pipe (as shown in figure) that tapers in cross-sectional area from a to 2a. The pressure difference between the wide and narrow sections of pipe is 4100Pa. At wider section, the velocity of fluid is 6xms−1 for x=_____ . (Given g=10ms−2)
Official previous-year question
Held on 26 Jun 2022 · Verified 6 Jul 2026.
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
JEE Main Mechanics in other years
More JEE Main Mechanics questions
Two masses $m$ and 2 m are connected by a light string going over a pulley (disc) of mass 30 m with radius $r=0.1 \mathrm{~m}$. The pulley is mounted in a vertical plane and it is free to rotate about its axis. The 2 m mass is released from rest and its speed when it has descended through a height of 3.6 m is $\_\_\_\_$ $\mathrm{m} / \mathrm{s}$. (Assume string does not slip and $\mathrm{g}=10 \mathrm{~m} / \mathrm{s}^{2}$)
2026medium
When both jaws of vernier callipers touch each other, zero mark of the vernier scale is right to zero mark of main scale, $4^{\text {th }}$ mark on vernier scale coincides with certain mark on the main scale. While measuring the length of a cylinder, observer observes 15 divisions on main scale and $5^{\text {th }}$ division of vernier scale coincides with a main scale division. Measured length of cylinder is $\_\_\_\_$ mm. (Least count of Vernier calliper $=0.1 \mathrm{~mm}$)
2026medium
In an experiment the values of two spring constants were measured as $k_{1}=(10 \pm 0.2) \mathrm{N} / \mathrm{m}$ and $k_{2}=(20 \pm 0.3) \mathrm{N} / \mathrm{m}$. If these springs are connected in parallel, then the percentage error in equivalent spring constant is :
2026medium
A river of width 200 m is flowing from west to east with a speed of $18 \mathrm{~km} / \mathrm{h}$. A boat, moving with speed of $36 \mathrm{~km} / \mathrm{h}$ in still water, is made to travel one-round trip (bank to bank of the river). Minimum time taken by the boat for this journey and also the displacement along the river bank are $\_\_\_\_$ and $\_\_\_\_$ respectively.
2026medium
A $0.5$ kg mass is in contact against the inner wall of a cylindrical drum of radius $4$ m rotating about its vertical axis. The minimum rotational speed of the drum to enable the mass to remain stuck to the wall (without falling) is $5$ rad/s. The coefficient of friction between the drum's inner wall surface and mass is _______. (Take $g = 10$ m/s$^2$)
2026medium
