Moment of inertia of a cylinder… - JEE Main 2020 Physics PYQ

JEE Main 2020 — Physics Mechanics

2020mcqhard

Moment of inertia of a cylinder of mass $m,$ length $L$ and radius $R$ about an axis passing through its centre and perpendicular to the axis of the cylinder is $I=M(\frac{{R}^{2}}{4}+\frac{{L}^{2}}{12}).$ If such a cylinder is to be made for a given mass of a material, the ratio $\frac{L}{R}$ for it to have minimum possible $I$ is:

Official previous-year question

Held on 3 Sept 2020 · Verified 6 Jul 2026.

Options

A
$\frac{2}{3}$
B
$\frac{3}{2}$
C
$\sqrt{\frac{3}{2}}$
D
$\sqrt{\frac{2}{3}}$

Did you get this right?

Solution

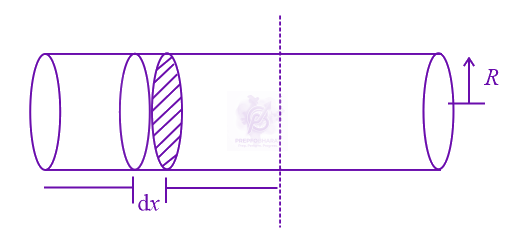

Let a cylinder of mass ${m}_{1}$ , length $L$ and radius $R$ then take elementary disc of radius $R$ and trickiness $\mathrm{dx}$ at distance of $x$ from axis $OO'$ then moment of inertia about $OO'$ as this element

JEE Main 2020 Physics, Rotational Motion — solution figure

$\mathrm{dl}=\frac{{\mathrm{dmR}}^{2}}{4}+{\mathrm{dmx}}^{2}$

$I=\int \mathrm{dl}=\int \frac{{\mathrm{dmR}}^{2}}{4}+{\int }_{n=L/2}^{n=-L/2}\frac{M}{L}\mathrm{dx}\times {x}^{2}$

$\Rightarrow I=\frac{{\mathrm{MR}}^{2}}{4}+\frac{{\mathrm{ML}}^{2}}{12}$

$\Rightarrow I=\frac{M}{4}\times \frac{V}{\pi L}+\frac{{\mathrm{ML}}^{2}}{12}$

$\frac{\mathrm{dI}}{\mathrm{dL}}=-\frac{mV}{4{\pi L}^{2}}+\frac{M\times 2L}{12}=0$

$\Rightarrow V=\frac{2}{3}{\pi L}^{3} \Rightarrow {\pi R}^{2}L=\frac{2}{3}{\pi L}^{3} \Rightarrow \frac{L}{R}=\sqrt{\frac{3}{2}}$ $(I=\frac{\mathrm{MV}}{4\pi L}+\frac{{\mathrm{ML}}^{2}}{12})$
