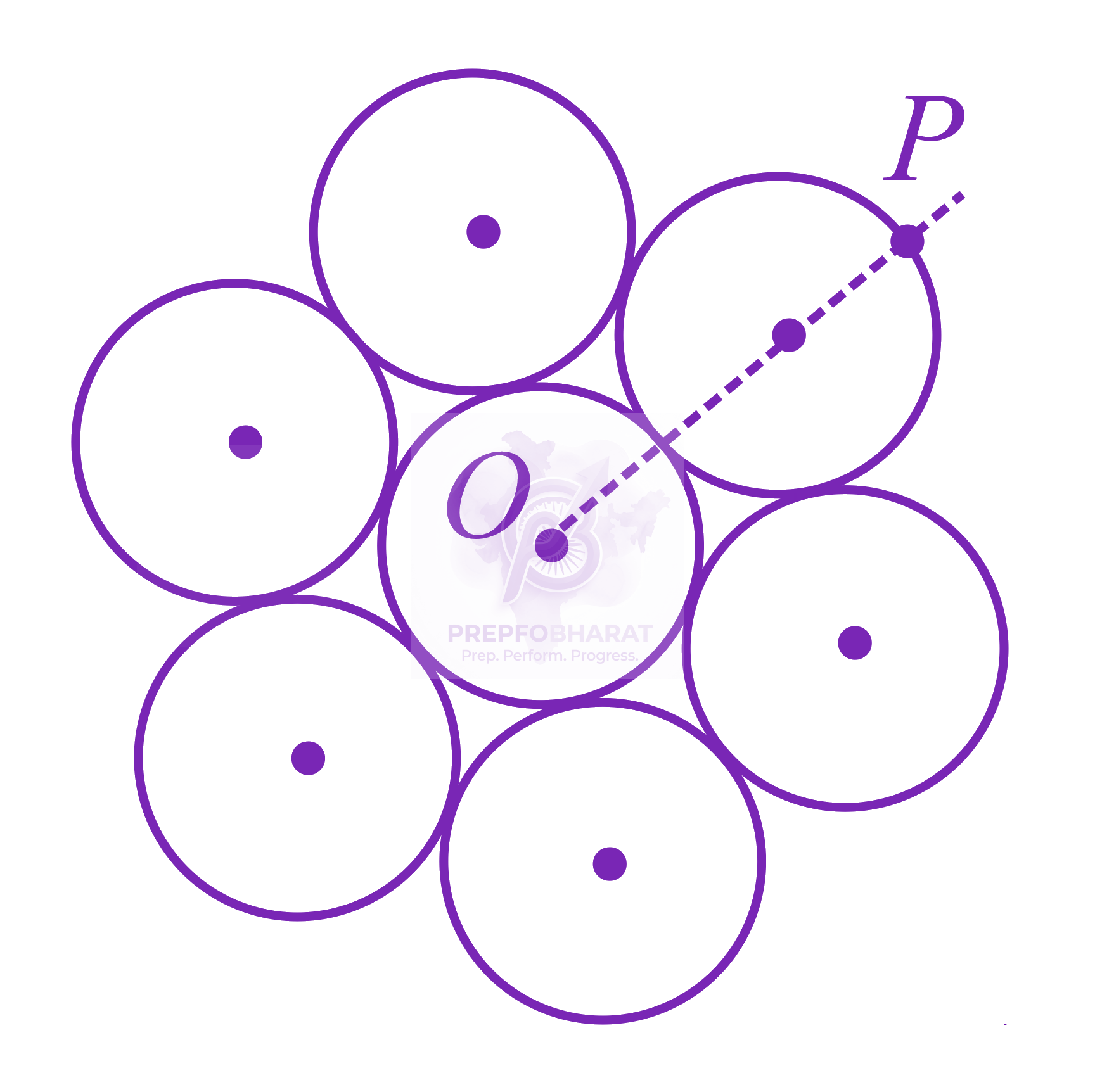

Seven identical circular planar disks, each of mass M and radius R are welded symmetrically as shown. The moment of inertia of the arrangement about the axis normal to the plane and passing through the point P is: ![JEE Main 2018 Physics, Rotational Motion — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Rotational_Motion/648b5a65417cc3fb48d661fe/question_1__q_648b5a65417cc3fb48d661fe__cdn-question-pool.getmarks.app__342daea2-3c3e-4e75-9595-9c02e7e18bc4-image__206f80073d_final_ppt_sync.png)

Seven identical circular planar… - JEE Main 2018 Physics PYQ

JEE Main 2018 — Physics Mechanics

2018mcqmedium

Seven identical circular planar disks, each of mass M and radius R are welded symmetrically as shown. The moment of inertia of the arrangement about the axis normal to the plane and passing through the point P is:

JEE Main 2018 Physics, Rotational Motion — question figure

Official previous-year question

Held on 8 Apr 2018 · Verified 6 Jul 2026.

Options

A
$\frac{181}{2}M{R}^{2}$
B
$\frac{19}{2} M{R}^{2}$
C
$\frac{55}{2}M{R}^{2}$
D
$\frac{73}{2}M{R}^{2}$

Did you get this right?

Solution

The motion of inertia of the system about $O$ ,

$\frac{1}{2}M{R}^{2}+6\times \frac{1}{2}M{R}^{2}+6\times M\times {(2R)}^{2}$

$\Rightarrow {I}_{1}=\frac{7}{2}M{R}^{2}+24M{R}^{2}$

The motion of inertia of the system about $P$ ,

${\Rightarrow I}_{1}+7M{D}^{2}$

$\Rightarrow \frac{7}{2}M{R}^{2}+24M{R}^{2}+7M\times {(3R)}^{2}$

$\Rightarrow \frac{181}{2}M{R}^{2}$
