r=L2Rx+R
For a small section
AF=Ydxdl
⟹∫0LdL=∫0Lπ[L2Rx×R]2YMgdx
ΔL=πYMg[−[L2Rx+R]0L1×2RL]
=3πR2YMgL
Lf=L+ΔL=L[1+3πR2Ymg]

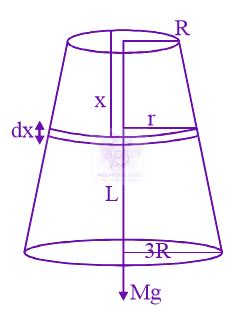

A uniformly tapering conical wire is made from a material of Young's modulus Y and has a normal, unextended length L. The radii, at the upper and lower ends of this conical wire, have values R and 3R, respectively. The upper end of the wire is fixed to a rigid support and a mass M is suspended from its lower end. The equilibrium extended length, of this wire, would equal:
Held on 9 Apr 2016 · Verified 6 Jul 2026.
L(1+92πYR2Mg)
L(1+91πYR2Mg)
L(1+31πYR2Mg)
L(1+32πYR2Mg)
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
Net gravitational force at the center of a square is found to be $F_{1}$ when four particles having mass $M, 2 M, 3 M$ and $4 M$ are placed at the four corners of the square as shown in figure and it is $F_{2}$ when the positions of $3 M$ and $4 M$ are interchanged. The ratio $\frac{F_{1}}{F_{2}}$ is $\frac{\alpha}{\sqrt{5}}$. The value of $\alpha$ is $\_\_\_\_$.
A particle of mass 2 kg is projected vertically upward with a speed of 30 m/s. The maximum height reached by the particle is (g = 10 m/s²):
Two projectiles are projected with the same initial velocities at the $15^\circ$ and $30^\circ$ with respect to the horizontal. The ratio of their ranges is $1:x$. The value of $x$ is:
In an experiment the values of two spring constants were measured as $k_{1}=(10 \pm 0.2) \mathrm{N} / \mathrm{m}$ and $k_{2}=(20 \pm 0.3) \mathrm{N} / \mathrm{m}$. If these springs are connected in parallel, then the percentage error in equivalent spring constant is :
The surface tension of a soap solution is $3.5 \times 10^{-2}$ N/m. The work required to increase the radius of a soap bubble from $1$ cm to $2$ cm is $\alpha \times 10^{-6}$ J. The value of $\alpha$ is _____. ($\pi = 22/7$)
