JEE Main 2021 — Physics Modern Physics

Two p-n junction diodes $D_{1}$ and $D_{2}$ are connected as shown in figure. $A$ and $B$ are input signals and $C$ is the output. The given circuit will function as a $\_\_\_\_$.

The energy released when $\dfrac{7}{17.13}$ kg of $^{7}_{3}\text{Li}$ is converted into $^{4}_{2}\text{He}$ by proton bombardment is $\alpha \times 10^{32}$ eV. The value of $\alpha$ is _______. (Nearest integer) (Mass of $^{7}_{3}\text{Li} = 7.0183$ u, mass of $^{4}_{2}\text{He} = 4.004$ u, mass of proton $= 1.008$ u and $1$ u $= 931$ MeV/c$^2$ and Avogadro number $= 6.0 \times 10^{23}$)

When a light of a given wavelength falls on a metallic surface the stopping potential for photoelectrons is 3.2 V. If a second light having wavelength twice of first light is used, the stopping potential drops to 0.7 V. The wavelength of first light is $\_\_\_\_$ m. $\left(\mathrm{h}=6.63 \times 10^{-34} \mathrm{~J}. \mathrm{s}, \mathrm{e}=1.6 \times 10^{-19} \mathrm{C}, \mathrm{c}=3 \times 10^{8} \mathrm{~m} / \mathrm{s}\right)$

The de Broglie wavelength of an oxygen molecule at $27^{\circ} \mathrm{C}$ is $x \times 10^{-12} \mathrm{~m}$. The value of $x$ is (take Planck's constant $=6.63 \times 10^{-34} \mathrm{~J}. \mathrm{s}$, Boltzmann constant $=1.38 \times 10^{-23} \mathrm{~J} / \mathrm{K}$, mass of oxygen molecule $=5.31 \times 10^{-26} \mathrm{~kg}$)

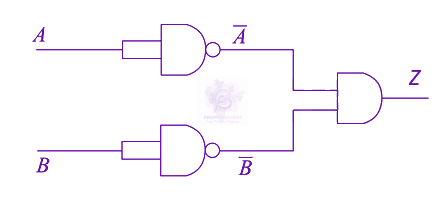

The given circuit works as :
