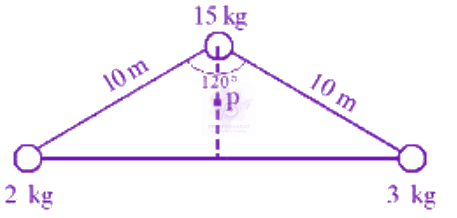

The position of center of mass of three masses $2$ kg, $3$ kg and $15$ kg placed with respect to mid point ($p$) of normal bisector, as shown in the figure is _______. ![JEE Main 2026 Physics, Center of Mass Momentum and Collision — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Center_of_Mass_Momentum_and_Collision/69d8074c81239f6567c4f41d/question_1__q_69d8074c81239f6567c4f41d__cdn-question-pool.getmarks.app__06APRS1__q33_d1__0621bbd2eb_final_ppt_sync.png)

The position of center of mass… - JEE Main 2026 Physics PYQ

JEE Main 2026 — Physics Mechanics

2026mcqmedium

The position of center of mass of three masses $2$ kg, $3$ kg and $15$ kg placed with respect to mid point ( $p$ ) of normal bisector, as shown in the figure is _______.

JEE Main 2026 Physics, Center of Mass Momentum and Collision — question figure

Official previous-year question

Held on 6 Apr 2026 · Verified 6 Jul 2026.

Options

A
$\left(\dfrac{\sqrt{3}}{4}, 1.25\right)$
B
$\left(\dfrac{\sqrt{3}}{4}, 1.0\right)$
C
$(0, 0)$
D
$(1.25, 0)$

Did you get this right?

Solution

Let the midpoint $p$ of the normal bisector be the origin $(0,0)$ .

The triangle is isosceles with two sides of $10\text{ m}$ and an included angle of $120^\circ$ . The altitude from the $15\text{ kg}$ mass bisects the angle into two $60^\circ$ angles.

The length of the altitude is $10 \cos(60^\circ) = 5\text{ m}$ .

Since $p$ is the midpoint of this altitude, the $15\text{ kg}$ mass is at a distance of $2.5\text{ m}$ above $p$ , and the base is $2.5\text{ m}$ below $p$ .

The distance of the $2\text{ kg}$ and $3\text{ kg}$ masses from the altitude is $10 \sin(60^\circ) = 5\sqrt{3}\text{ m}$ .

The coordinates of the masses with respect to $p$ are:

$m_1 = 15\text{ kg}$ at $(0, 2.5)$

$m_2 = 2\text{ kg}$ at $(-5\sqrt{3}, -2.5)$

$m_3 = 3\text{ kg}$ at $(5\sqrt{3}, -2.5)$

The x-coordinate of the center of mass is:

$x_{cm} = \dfrac{m_1 x_1 + m_2 x_2 + m_3 x_3}{m_1 + m_2 + m_3} = \dfrac{15(0) + 2(-5\sqrt{3}) + 3(5\sqrt{3})}{15 + 2 + 3} = \dfrac{5\sqrt{3}}{20} = \dfrac{\sqrt{3}}{4}$

The y-coordinate of the center of mass is:

$y_{cm} = \dfrac{m_1 y_1 + m_2 y_2 + m_3 y_3}{m_1 + m_2 + m_3} = \dfrac{15(2.5) + 2(-2.5) + 3(-2.5)}{20} = \dfrac{37.5 - 12.5}{20} = \dfrac{25}{20} = 1.25$

The position of the center of mass is $\left(\dfrac{\sqrt{3}}{4}, 1.25\right)$ .

Answer: $\left(\dfrac{\sqrt{3}}{4}, 1.25\right)$
