Two inclined planes are placed as shown in figure.

A block is projected from the Point $A$ of inclined plane $AB$ along its surface with a velocity just sufficient to carry it to the top Point $B$ at a height $10m$ . After reaching the Point $B$ the block slides down on inclined plane $BC$ . Time it takes to reach to the point $C$ from point $A$ is $t(\sqrt{2}+1)s$ . The value of t is _____ (use $g=10m{s}^{-2}$ )

JEE Main 2022 Physics, Work Power Energy — question figure

Official previous-year question

Held on 27 Jul 2022 · Verified 6 Jul 2026.

Did you get this right?

Solution

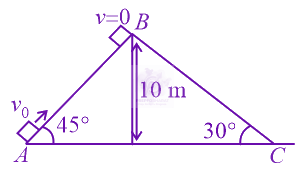

JEE Main 2022 Physics, Work Power Energy — solution figure

From energy conservation at point $A$ and $B$ ,

$\frac{1}{2}m{v}_{0}^{2}=mgh$

$\Rightarrow {v}_{0}=\sqrt{gh}=\sqrt{10\times 10}$

$\Rightarrow {v}_{0}=10\sqrt{2}m{s}^{-1}$

For $A\rightarrow B$

At $B,v=0$

Acceleration of a particle moving on a smooth incline is $g\mathrm{sin}\theta$ . Therefore, along $AB$ , $a=-g\mathrm{sin}45^{\circ}=\frac{-10}{\sqrt{2}}m{s}^{-2}$ .

Using equation of motion,

$v=u+a{t}_{1}$

$0=10\sqrt{2}-\frac{10}{\sqrt{2}}{t}_{1}\Rightarrow {t}_{1}=2s$

For $B\rightarrow C$

Using second equation of motion,

$s=u{t}_{2}+\frac{1}{2}a{t}_{2}^{2}$

$\Rightarrow \frac{10}{\mathrm{sin}30^{\circ}}=\frac{1}{2}(10\mathrm{sin}30^{\circ}){t}_{2}^{2}$

${t}_{2}=2\sqrt{2}s$

So total time $T={t}_{1}+{t}_{2}$ $=2\sqrt{2}+2$

$=2(\sqrt{2}+1)s$
