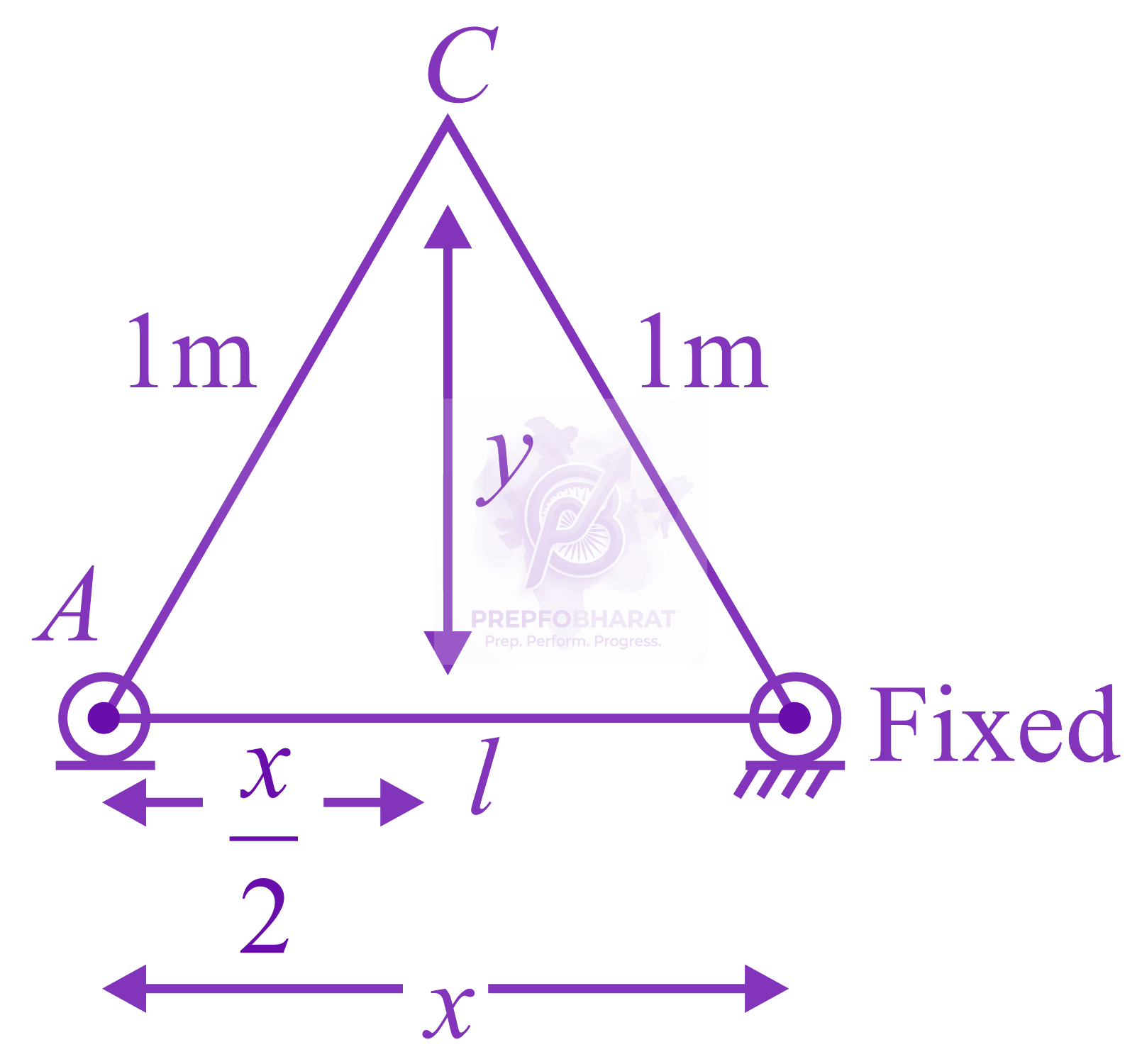

vA=dtdx=dtd[2lcos(θ)]=−2lsin(θ)dtdθ and
Vertical velocity of B, vB=dtdy=dtd[lsin(θ)]=lcos(θ)dtdθ
vBvA=−2tan(θ)⇒vB=−2vAcot(θ)
θ→increase
cotθ→decrease
Hence, ∣vB∣→decrease.
The machine as shown has 2 rods of length 1m connected by a pivot at the top. The end of one rod is connected to the floor by a stationary pivot and…
JEE Main 2017 — Physics Mechanics
2017mcqhard

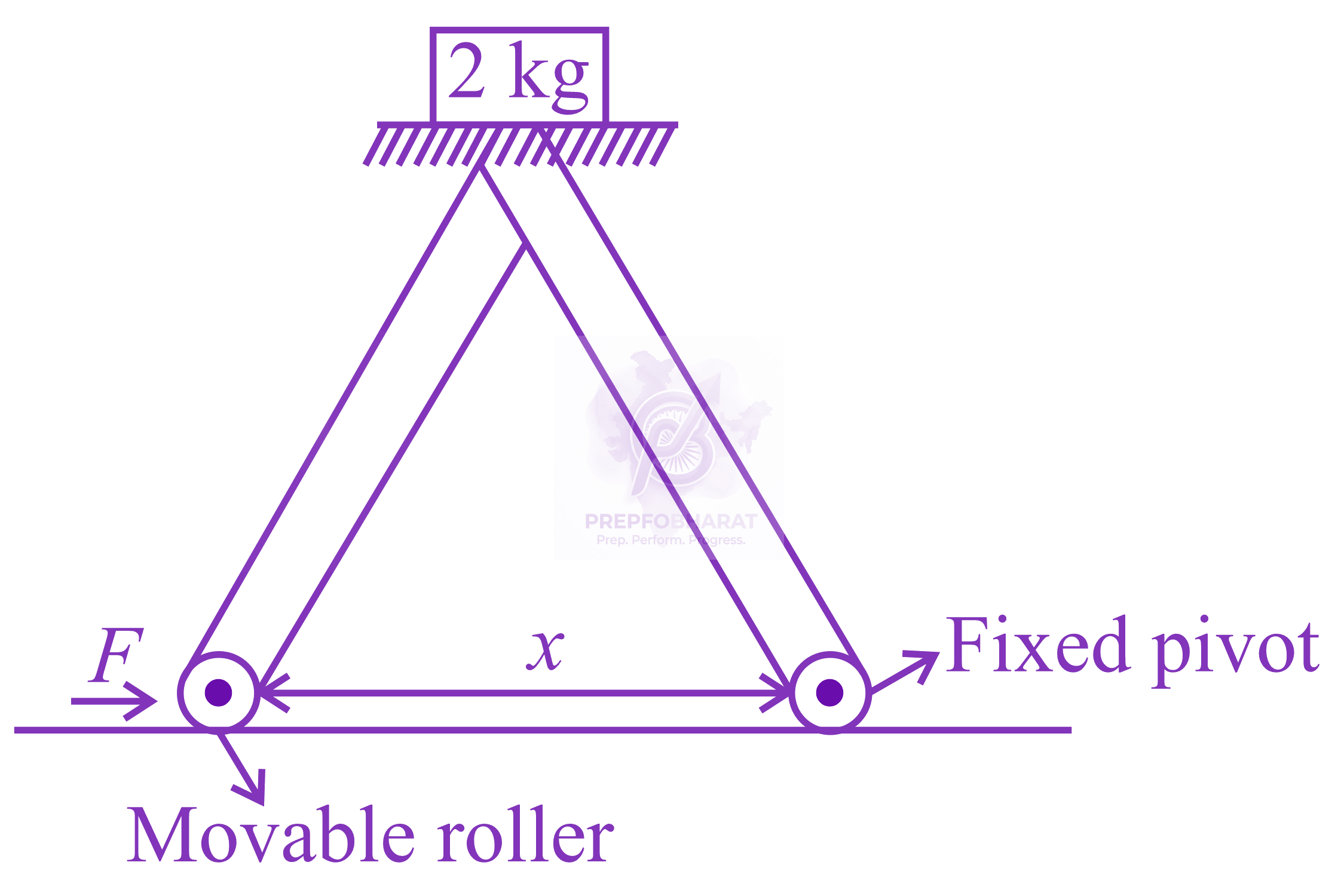

The machine as shown has 2 rods of length 1m connected by a pivot at the top. The end of one rod is connected to the floor by a stationary pivot and the end of the other rod has roller that rolls along the floor in a slot. As the roller goes back and forth, a 2kg weight moves up and down. If the roller is moving towards right at a constant speed, the weight moves up with a :
Official previous-year question
Held on 9 Apr 2017 · Verified 6 Jul 2026.
Options
- A
Speed which is 43th of that of the roller when the weight is 0.4m above the ground
- B
Constant speed
- C
Decreasing speed
- D
Increasing speed
