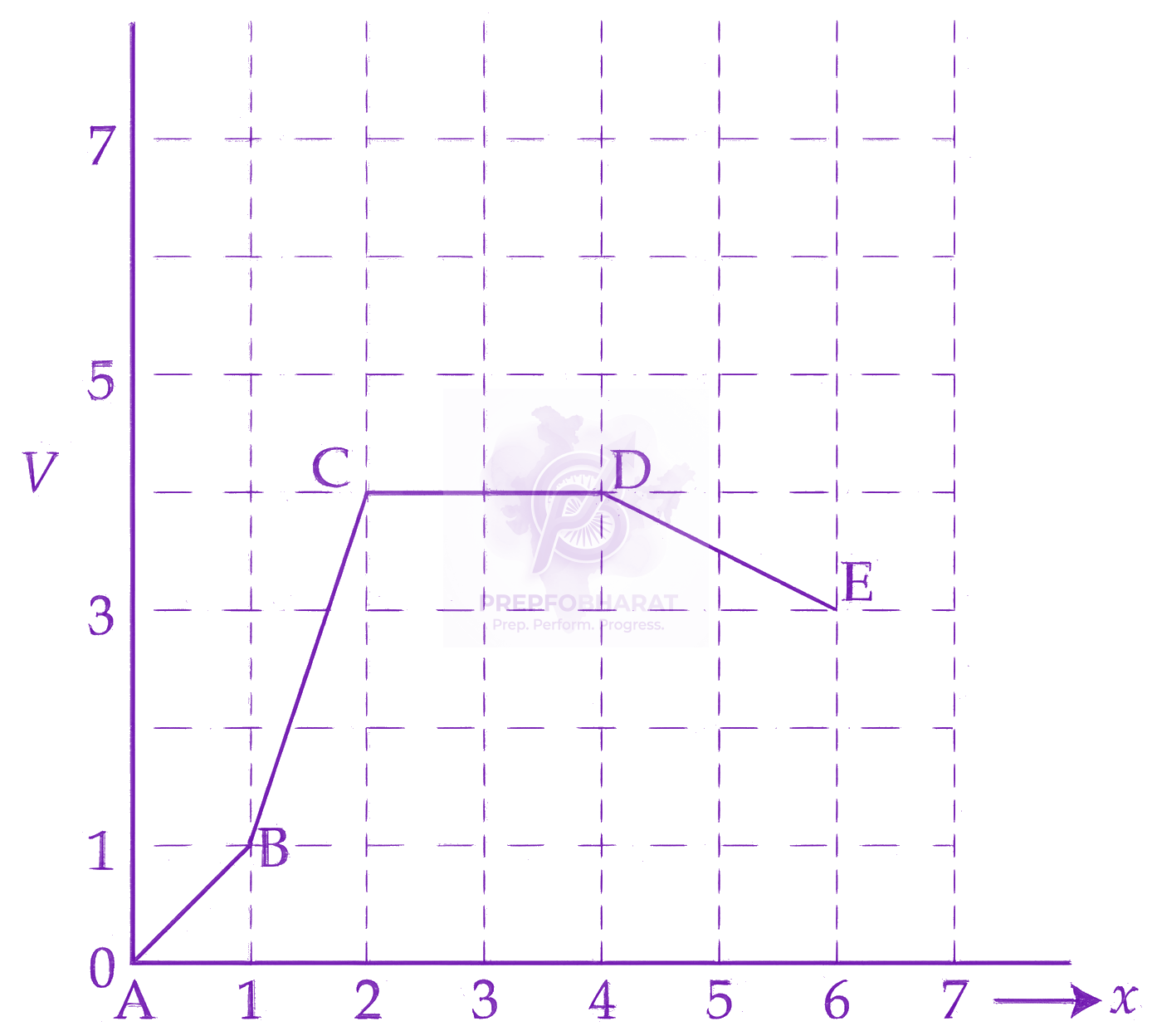

Potential energy ($V$) versus distance ($x$) is given by the graph. Rank various regions as per the magnitudes of the force (F) acting on a particle from high to low. ![JEE Main 2026 Physics, Work Power Energy — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Work_Power_Energy/6983c17c8bfdbb243563955c/question_1__q_6983c17c8bfdbb243563955c__cdn-question-pool.getmarks.app__21S1_q_43_1__ad633b37fd_final_ppt_sync.png)

Potential energy (V) versus… - JEE Main 2026 Physics PYQ

JEE Main 2026 — Physics Mechanics

2026mcqmedium

Potential energy ( $V$ ) versus distance ( $x$ ) is given by the graph. Rank various regions as per the magnitudes of the force (F) acting on a particle from high to low.

JEE Main 2026 Physics, Work Power Energy — question figure

Official previous-year question

Held on 21 Jan 2026 · Verified 6 Jul 2026.

Options

A
$F_{C D}>F_{A B}>F_{B C}>F_{D E}$
B
$F_{C D}>F_{D E}>F_{A B}>F_{B C}$
C
$F_{B C}>F_{C D}>F_{D E}>F_{A B}$
D
$F_{B C}>F_{A B}>F_{D E}>F_{C D}$

Did you get this right?

Solution

Force is related to potential energy by $F = -\frac{dV}{dx}$ .

Magnitude of force $|F| = \left|\frac{dV}{dx}\right|$ = |slope of V-x graph|

From graph coordinates: A(1, 0), B(1.5, 1), C(2, 4), D(4, 4), E(5, 3)

$|F_{AB}| = \frac{1-0}{1.5-1} = 2$

$|F_{BC}| = \frac{4-1}{2-1.5} = 6$

$|F_{CD}| = \frac{4-4}{4-2} = 0$

$|F_{DE}| = \frac{|3-4|}{5-4} = 1$

Ranking: $F_{BC} > F_{AB} > F_{DE} > F_{CD}$
