Deformation angle
$\begin{aligned}
& 2 \theta_1=\theta_2 \
& \Rightarrow 2 \frac{\sigma_1}{\eta_1}=\frac{\sigma_2}{\eta_2}
\end{aligned}$
⇒2(ℓ d1η1 F)=ℓd2η2F⇒η2=4η1=1×109⇒x=1
Two slabs with square cross section of different materials (1,2) with equal sides (l) and thickness d_1 and d_2 such that d_2=2 ~d_1 and l gt d_2.…
JEE Main 2025 — Physics Mechanics
2025integerhard

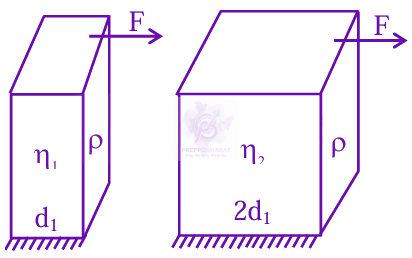

Two slabs with square cross section of different materials (1,2) with equal sides (l) and thickness d1 and d2 such that d2=2 d1 and l>d2. Considering lower edges of these slabs are fixed to the floor, we apply equal shearing force on the narrow faces. The angle of deformation is θ2=2θ1. If the shear moduli of material 1 is 4×109 N/m2, then shear moduli of material 2 is x×109 N/m2, where value of x is ________.
Official previous-year question
Held on 4 Apr 2025 · Verified 6 Jul 2026.
