A $\sqrt{34}m$ long ladder weighing $10\mathrm{kg}$ leans on a frictionless wall. Its feet rest on the floor $3m$ away from the wall as shown in the figure. If ${F}_{f}$ and ${F}_{w}$ are the reaction forces of the floor and the wall, then ratio of $\frac{{F}_{w}}{{F}_{f}}$ will be : (Use $g=10m{s}^{-2}$.) ![JEE Main 2022 Physics, Rotational Motion — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Rotational_Motion/648b5a6e417cc3fb48d67d30/question_1__q_648b5a6e417cc3fb48d67d30__cdn-question-pool.getmarks.app__6a305d3f-238a-4aa4-bece-92bd34152a39-image__c4b9097322_final_ppt_sync.png)

![JEE Main 2022 Physics, Rotational Motion — solution figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Rotational_Motion/648b5a6e417cc3fb48d67d30/solution_1__q_648b5a6e417cc3fb48d67d30__cdn-question-pool.getmarks.app__c7c1faaf-982e-474f-9f19-30ca0e6bb662-image__6b86547113_final_ppt_sync.png) Applying force balance in vertical direction ${N}_{1}=mg=100N$ Applying torque balance at the bottom contact point, $mg\times \frac{3}{2}={N}_{2}\times 5\Rightarrow {N}_{2}={F}_{w}=30N$ Applying force balance in horizontal direction ${f}_{s}={N}_{2}=30N$ Net reaction at the floor will be, ${F}_{f}=\sqrt{{{N}_{1}}^{2}+{{f}_{s}}^{2}}=\sqrt{{100}^{2}+{30}^{2}}=10\sqrt{109}N$ Therefore, $\frac{{F}_{w}}{{F}_{f}}=\frac{30}{10\sqrt{109}}=\frac{3}{\sqrt{109}}$

A √34m long ladder weighing 10… - JEE Main 2022 Physics PYQ

JEE Main 2022 — Physics Mechanics

2022mcqmedium

A $\sqrt{34}m$ long ladder weighing $10\mathrm{kg}$ leans on a frictionless wall. Its feet rest on the floor $3m$ away from the wall as shown in the figure. If ${F}_{f}$ and ${F}_{w}$ are the reaction forces of the floor and the wall, then ratio of $\frac{{F}_{w}}{{F}_{f}}$ will be :

(Use $g=10m{s}^{-2}$ .)

JEE Main 2022 Physics, Rotational Motion — question figure

Official previous-year question

Held on 28 Jun 2022 · Verified 6 Jul 2026.

Options

A
$\frac{6}{\sqrt{110}}$
B
$\frac{3}{\sqrt{113}}$
C
$\frac{3}{\sqrt{109}}$
D
$\frac{2}{\sqrt{109}}$

Did you get this right?

Solution

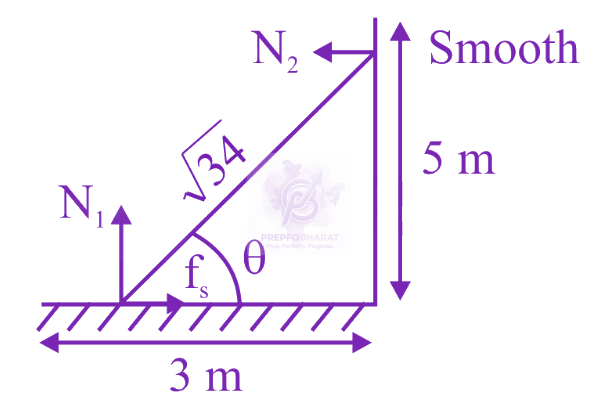

JEE Main 2022 Physics, Rotational Motion — solution figure

Applying force balance in vertical direction

${N}_{1}=mg=100N$

Applying torque balance at the bottom contact point,

$mg\times \frac{3}{2}={N}_{2}\times 5\Rightarrow {N}_{2}={F}_{w}=30N$

Applying force balance in horizontal direction

${f}_{s}={N}_{2}=30N$

Net reaction at the floor will be,

${F}_{f}=\sqrt{{{N}_{1}}^{2}+{{f}_{s}}^{2}}=\sqrt{{100}^{2}+{30}^{2}}=10\sqrt{109}N$

Therefore, $\frac{{F}_{w}}{{F}_{f}}=\frac{30}{10\sqrt{109}}=\frac{3}{\sqrt{109}}$
