Resultant (R)=i^(10cos30∘+20cos60∘−15cos30∘−15cos45∘+20cos45∘)
+j^(10sin30∘+20sin60∘+15sin30∘−15sin45∘−20cos45∘)
=9.25i^+5j^

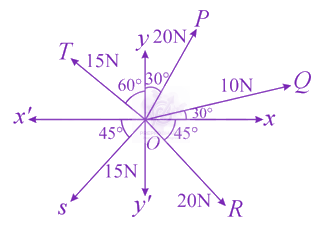

The resultant of these forces OP, OQ, OR, OS and OT is approximately N. [Take √3=1.7,√2=1.4 Given i and j unit vectors along x,y axis]
JEE Main 2021 — Physics Mechanics
The resultant of these forces OP,OQ,OR,OS and OT is approximately ______N.
[Take 3=1.7,2=1.4 Given i^ and j^ unit vectors along x,y axis]
Held on 27 Aug 2021 · Verified 1 Jul 2026.
Options
- A
−1.5i^−15.5j^
- B
9.25i^+5j^
- C
3i^+15j^
- D
2.5i^−14.5j^
