A simple pendulum, made of a… - JEE Main 2019 Physics PYQ

JEE Main 2019 — Physics Mechanics

2019mcqhard

A simple pendulum, made of a string of length $l$ and $a$ bob of mass $m,$ is released from a small angle ${\theta }_{0}.$ It strikes a block of mass $M,$ kept on horizontal surface at its lowest point of oscillations, elastically. It bounces back and goes up to an angle ${\theta }_{1}.$ Then $M$ is given by:

Official previous-year question

Held on 12 Jan 2019 · Verified 6 Jul 2026.

Options

A
$m(\frac{{\theta }_{0}-{\theta }_{1}}{{\theta }_{0}+{\theta }_{1}})$
B
$m(\frac{{\theta }_{0}+{\theta }_{1}}{{\theta }_{0}-{\theta }_{1}})$
C
$\frac{m}{2}(\frac{{\theta }_{0}+{\theta }_{1}}{{\theta }_{0}-{\theta }_{1}})$
D
$\frac{m}{2}(\frac{{\theta }_{0}-{\theta }_{1}}{{\theta }_{0}+{\theta }_{1}})$

Did you get this right?

Solution

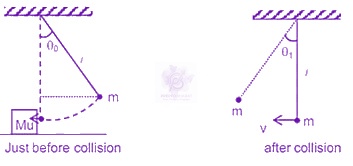

JEE Main 2019 Physics, Center of Mass Momentum and Collision — solution figure

$u=\sqrt{2 gl(1-cos {\theta }_{0})}$ .......(i)

$v=$ velocity of ball after collision

$v=(\frac{m-M}{m+M})u$

Since ball rises up to angle ${\theta }_{1}$

$v=\sqrt{2gl(1-cos {\theta }_{1})}=(\frac{m-M}{m+M})u$ ......(ii)

From (i) and (ii)

$\frac{m-M}{m+M}=\sqrt{\frac{1-cos {\theta }_{1}}{1-cos {\theta }_{0}}}=\frac{sin(\frac{{\theta }_{1}}{2})}{sin(\frac{{\theta }_{0}}{2})}$

$\Rightarrow \frac{M}{m}=\frac{{\theta }_{0}-{\theta }_{1}}{{\theta }_{0}+{\theta }_{1}}\Rightarrow M=(\frac{{\theta }_{0}-{\theta }_{1}}{{\theta }_{0}+{\theta }_{1}})m$
