As roller moves forward radius of circle of left cone on track AB decreases. Thus right cone travel more distance compared to left and roller turns left
A roller is made by joining together two cones at their vertices O. It is kept on two rails AB and CD which are placed asymmetrically (see figure),…
JEE Main 2016 — Physics Mechanics
2016mcqhard

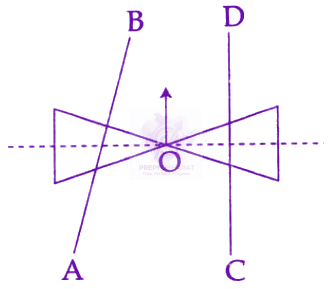

A roller is made by joining together two cones at their vertices O. It is kept on two rails AB and CD which are placed asymmetrically (see figure), with its axis perpendicular to CD and its centre O at the centre of line joining AB and CD (see figure). It is given a light push so that it starts rolling with its centre O moving parallel to CD in the direction shown. As it moves, the roller will tend to:
Official previous-year question
Held on 3 Apr 2016 · Verified 6 Jul 2026.
Options
- A
go straight.
- B
turn left and right alternately.
- C
turn left.
- D
turn right.
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
JEE Main Mechanics in other years
More JEE Main Mechanics questions
Two masses $m$ and 2 m are connected by a light string going over a pulley (disc) of mass 30 m with radius $r=0.1 \mathrm{~m}$. The pulley is mounted in a vertical plane and it is free to rotate about its axis. The 2 m mass is released from rest and its speed when it has descended through a height of 3.6 m is $\_\_\_\_$ $\mathrm{m} / \mathrm{s}$. (Assume string does not slip and $\mathrm{g}=10 \mathrm{~m} / \mathrm{s}^{2}$)
2026medium
When both jaws of vernier callipers touch each other, zero mark of the vernier scale is right to zero mark of main scale, $4^{\text {th }}$ mark on vernier scale coincides with certain mark on the main scale. While measuring the length of a cylinder, observer observes 15 divisions on main scale and $5^{\text {th }}$ division of vernier scale coincides with a main scale division. Measured length of cylinder is $\_\_\_\_$ mm. (Least count of Vernier calliper $=0.1 \mathrm{~mm}$)
2026medium
In an experiment the values of two spring constants were measured as $k_{1}=(10 \pm 0.2) \mathrm{N} / \mathrm{m}$ and $k_{2}=(20 \pm 0.3) \mathrm{N} / \mathrm{m}$. If these springs are connected in parallel, then the percentage error in equivalent spring constant is :
2026medium
A river of width 200 m is flowing from west to east with a speed of $18 \mathrm{~km} / \mathrm{h}$. A boat, moving with speed of $36 \mathrm{~km} / \mathrm{h}$ in still water, is made to travel one-round trip (bank to bank of the river). Minimum time taken by the boat for this journey and also the displacement along the river bank are $\_\_\_\_$ and $\_\_\_\_$ respectively.
2026medium
A $0.5$ kg mass is in contact against the inner wall of a cylindrical drum of radius $4$ m rotating about its vertical axis. The minimum rotational speed of the drum to enable the mass to remain stuck to the wall (without falling) is $5$ rad/s. The coefficient of friction between the drum's inner wall surface and mass is _______. (Take $g = 10$ m/s$^2$)
2026medium
