JEE Main 2023 — Chemistry Physical Chemistry

2023integereasy

The number of given orbitals which have electron density along the axis is

${p}_{x},{p}_{y},{p}_{z},{d}_{\mathrm{xy}},{d}_{\mathrm{yz}},{d}_{\mathrm{xz}},{d}_{z}^{2},{d}_{{x}^{2}-{y}^{2}}$

Official previous-year question

Held on 25 Jan 2023 · Verified 6 Jul 2026.

Did you get this right?

Solution

The orbitals oriented along axis have electron density along the axis.

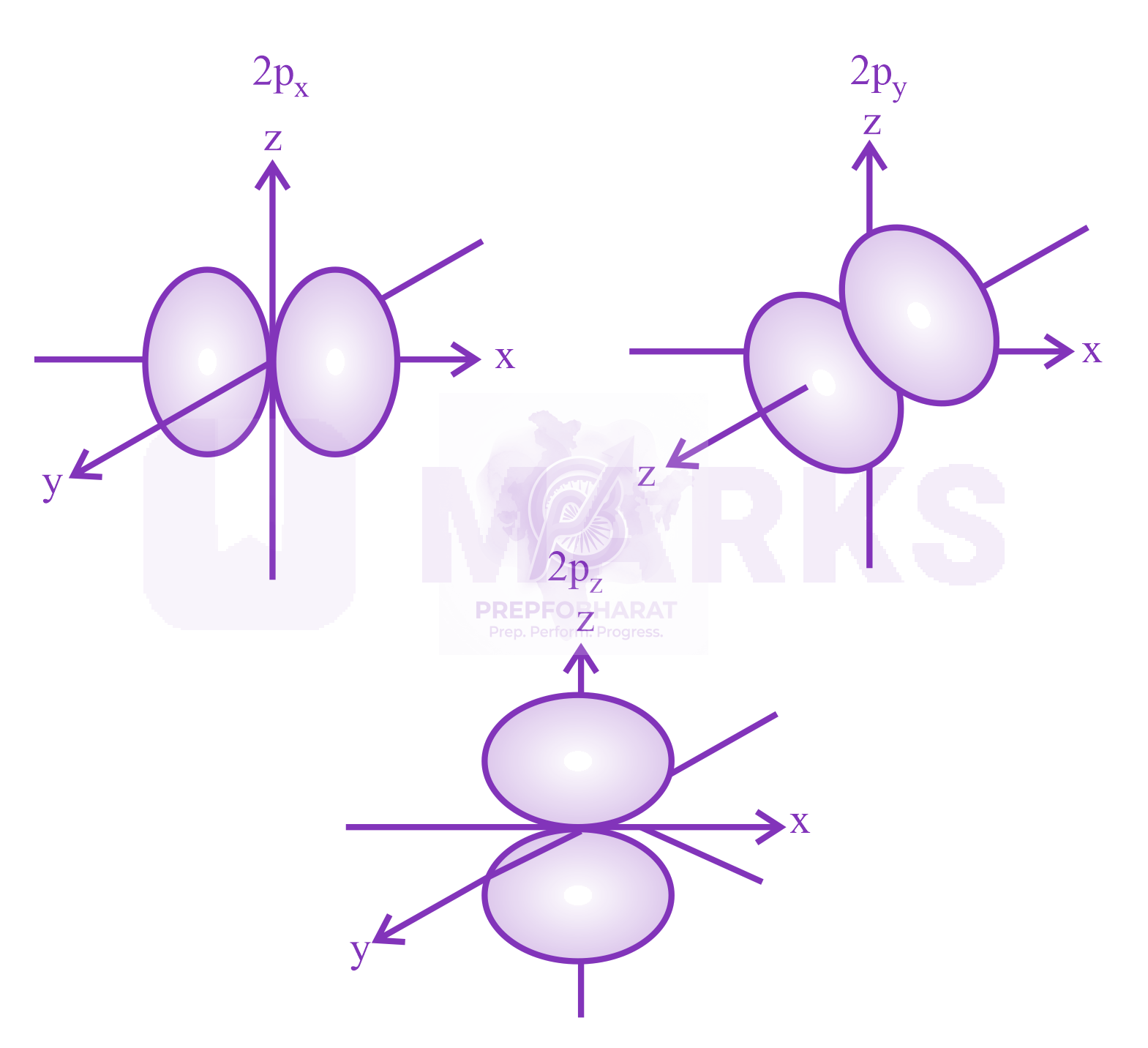

Orientation of $2p$ orbitals are as follows:

JEE Main 2023 Chemistry, Structure of Atom — solution figure 1

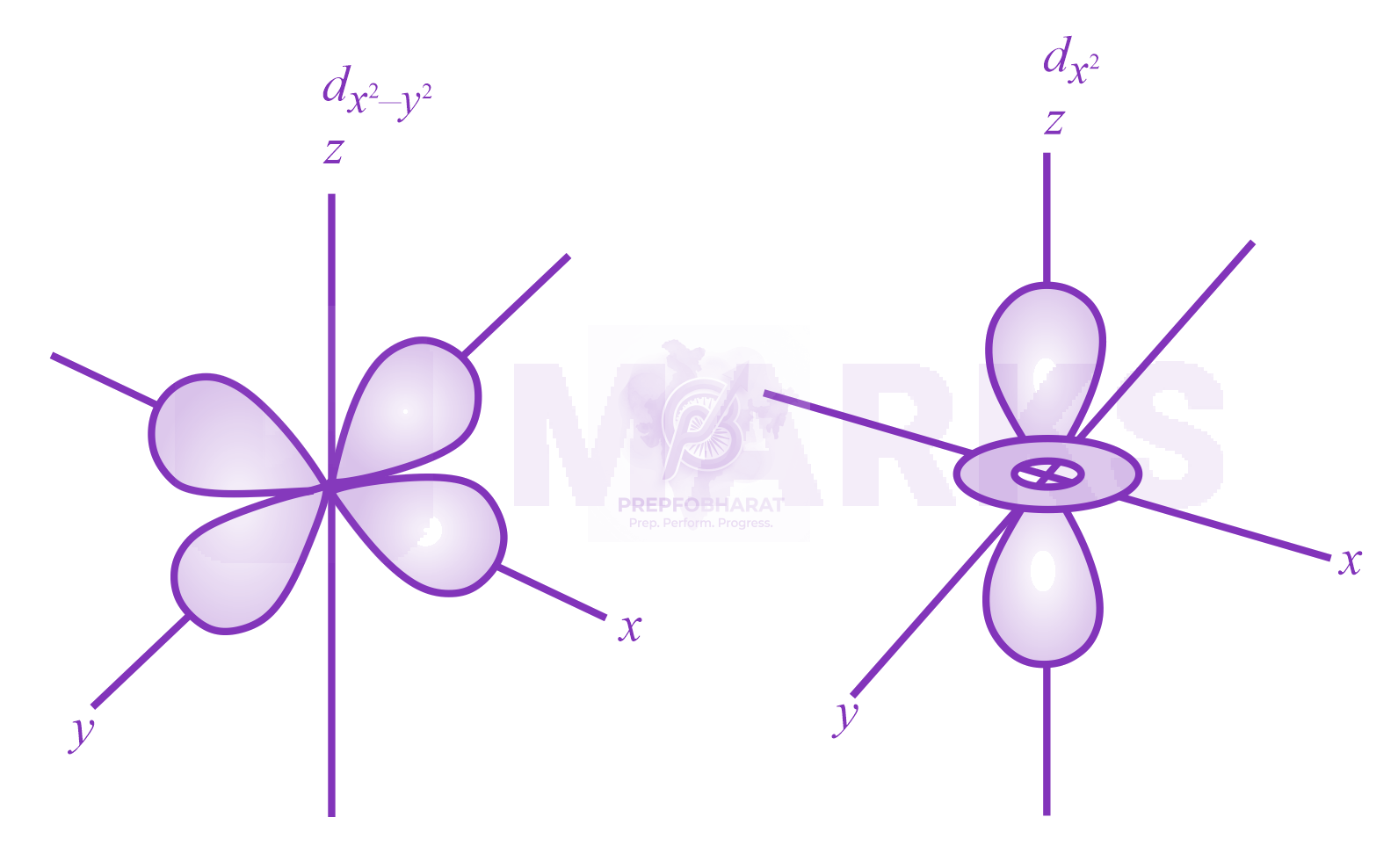

Orientation of ${d}_{{z}^{2}}&{d}_{{x}^{2}-{y}^{2}}:$

JEE Main 2023 Chemistry, Structure of Atom — solution figure 2 ,

Thus, ${p}_{x},{p}_{y},{p}_{z},{d}_{{z}^{2}}&{d}_{{x}^{2}-{y}^{2}}$ are axial orbitals.

The orbitals ${d}_{\mathrm{xy}},{d}_{\mathrm{yz}}\mathrm{and}{d}_{\mathrm{xz}}$ are oriented between the axis.
