1 to 2 , Isobaric process
2 to 3, Isochoric process
3 to 1, Isothermal process
Using work under isobaric, isochoric and isothermal processes respectively:
W=W1→2+W2→3+W3→1W=((−P(V2−V1)+0+(−P1V1(lnV1V2))=((−1(40−20)+0+(−1×20(ln4020))=620J

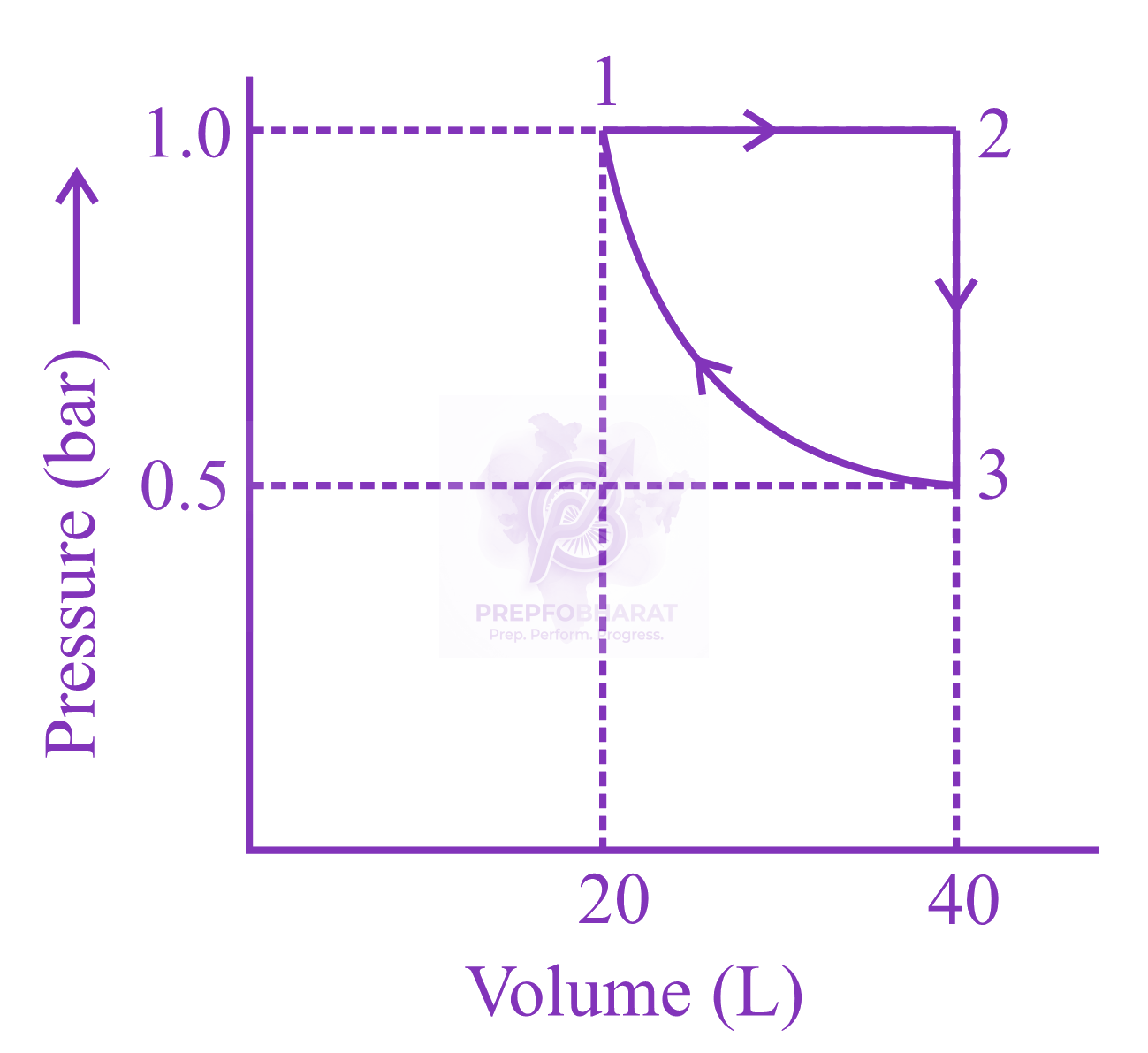

One mole of an ideal monoatomic gas is subjected to changes as shown in the graph. The magnitude of the work done (by the system or on the system) is…
JEE Main 2023 — Chemistry Physical Chemistry
2023integereasy
One mole of an ideal monoatomic gas is subjected to changes as shown in the graph. The magnitude of the work done (by the system or on the system) is _______ J (nearest integer)
Given : log 2 = 0.3, ln 10 = 2.3
Official previous-year question
Held on 24 Jan 2023 · Verified 6 Jul 2026.
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
JEE Main Physical Chemistry in other years
More JEE Main Physical Chemistry questions
80 mL of a hydrocarbon on mixing with 264 mL of oxygen in a closed U-tube undergoes complete combustion. The residual gases after cooling to 273 K occupy 224 mL. When the system is treated with KOH solution, the volume decreases to 64 mL. The formula of the hydrocarbon is :
2026hard
What is the energy (in J atom$^{-1}$) required for the following process? $Li^{2+}(g) \rightarrow Li^{3+}(g) + e^-$ (Take the ionization energy for the H atom in the ground state as $2.18 \times 10^{-18}$ J atom$^{-1}$)
2026medium
Consider the following reduction processes : $\mathrm{Al}^{3+}+3 \mathrm{e}^{-} \longrightarrow \mathrm{Al}(\mathrm{s}), \mathrm{E}^{0}=-1.66 \mathrm{~V}$ $\mathrm{Fe}^{3+}+\mathrm{e}^{-} \longrightarrow \mathrm{Fe}^{2+}, \mathrm{E}^{0}=+0.77 \mathrm{~V}$ $\mathrm{Co}^{3+}+\mathrm{e}^{-} \longrightarrow \mathrm{Co}^{2+}, \mathrm{E}^{0}=+1.81 \mathrm{~V}$ $\mathrm{Cr}^{3+}+3 \mathrm{e}^{-} \longrightarrow \mathrm{Cr}(\mathrm{s}), \mathrm{E}^{\circ}=-0.74 \mathrm{~V}$ The tendency to act as reducing agent decreases in the order :
2026medium
X and Y are the number of electrons involved, respectively during the oxidation of $\mathrm{I}^{-}$to $\mathrm{I}_{2}$ and $\mathrm{S}^{2-}$ to S by acidified $\mathrm{K}_{2} \mathrm{Cr}_{2} \mathrm{O}_{7}$. The value of $\mathrm{X}+\mathrm{Y}$ is $\_\_\_\_$.
2026medium
Identify the correct statements from the following: A. Heisenberg uncertainty principle is applicable to electrons. B. The size of $2p_x$ orbital is less than the size of $3p_x$ orbital. C. The energy of $2s$ orbital of H atom is equal to the energy of $2s$ orbital of Li. D. The electronic configuration of Cr is $[\text{Ar}] 3d^5 4s^1$ Choose the correct answer from the options given below:
2026medium
