![JEE Main 2020 Chemistry, Electrochemistry — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Chemistry/images/Electrochemistry/648b5a68417cc3fb48d66ab1/question_1__q_648b5a68417cc3fb48d66ab1__cdn-question-pool.getmarks.app__8b399f50-be59-4ec7-b16f-e656ecc71134-image__91ea9a6ca1_final_ppt_sync.png) ${E}_{{\mathrm{Cu}}^{2+}|\mathrm{Cu}}^{0}=+0.34V$ ${E}_{{\mathrm{Zn}}^{2+}|\mathrm{Zn}}^{0}=-0.76V$ Identify the incorrect statement from the options below for the above cell:

JEE Main 2020 — Chemistry Physical Chemistry

2020mcqmedium

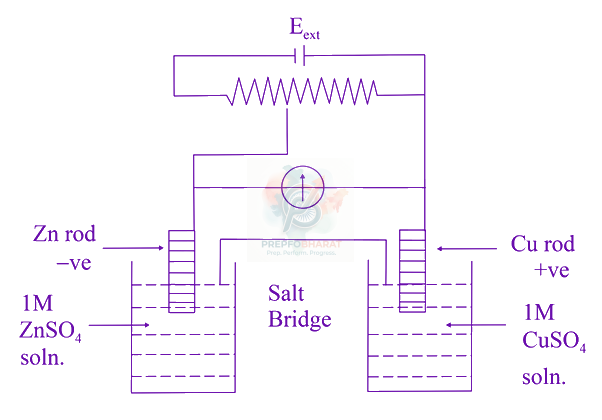

JEE Main 2020 Chemistry, Electrochemistry — question figure

${E}_{{\mathrm{Cu}}^{2+}|\mathrm{Cu}}^{0}=+0.34V$

${E}_{{\mathrm{Zn}}^{2+}|\mathrm{Zn}}^{0}=-0.76V$

Identify the incorrect statement from the options below for the above cell:

Official previous-year question

Held on 4 Sept 2020 · Verified 6 Jul 2026.

Options

A
If ${E}_{\mathrm{ext}}>1.1V,{e}^{–}$ flow from $\mathrm{Cu}$ to $\mathrm{Zn}$
B
If ${E}_{\mathrm{ext}}>1.1V,\mathrm{Zn}$ dissolves at $\mathrm{Zn}$ electrode and $\mathrm{Cu}$ deposits at $\mathrm{Cu}$ electrode
C
If ${E}_{\mathrm{ext}}<1.1V,\mathrm{Zn}$ dissolves at anode and $\mathrm{Cu}$ deposits at cathode
D
If ${E}_{\mathrm{ext}}=1.1V,$ no flow of ${e}^{–}$ or current occurs

Did you get this right?

Solution

${E}_{\mathrm{cell}}^{\circ }={E}_{{\mathrm{Cu}}^{2+}|\mathrm{Cu}}^{\circ }-{E}_{{\mathrm{Zn}}^{2+}|\mathrm{Zn}}^{\circ }=1.1 V$

So If $E=1.1 V$ no electron will flow

At $E>1.1V$ cell act as electrolytic cell and electron will flow from $\mathrm{Cu}$ to $\mathrm{Zn}$ .

At $E<1.1V$ cell act as electrochemical so $\mathrm{Zn}$ dissolve and $\mathrm{Cu}$ deposit.
