A uniform rod of length 200 cm and mass 500g is balanced on a wedge placed at 40 cm mark. A mass of 2 kg is suspended from the rod at 20 cm and…

NEET UG 2021 — Physics Mechanics

2021mcqeasy

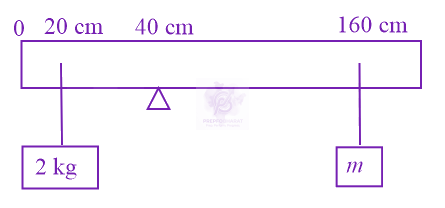

A uniform rod of length 200cm200\mathrm{cm}200cm and mass 500g500g500g is balanced on a wedge placed at 40cm40\mathrm{cm}40cm mark. A mass of 2kg2\mathrm{kg}2kg is suspended from the rod at 20cm20\mathrm{cm}20cm and another unknown mass mmm is suspended from the rod at 160cm160\mathrm{cm}160cm mark as shown in the figure. Find the value of mmm such that the rod is in equilibrium. (g=10ms−2)(g=10m{s}^{-2})(g=10ms−2)

NEET 2021 Physics, Rotational Motion — question figure

Official previous-year question

Held on 30 Apr 2021 · Verified 9 Jul 2026.

Options

  1. A

    12kg\frac{1}{2}\mathrm{kg}21​kg

  2. B

    13kg\frac{1}{3}\mathrm{kg}31​kg

  3. C

    112kg\frac{1}{12}\mathrm{kg}121​kg

  4. D

    16kg\frac{1}{6}\mathrm{kg}61​kg
