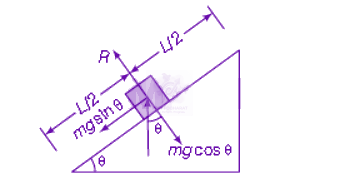

The block may be stationary, when mgsinθ⋅L=αmgcosθ2L αor α=mgcosθ2Lmgsinθ⋅L=2cosθsinθ=2tanθ=2tanθ
The upper half of an inclined plane of inclination θ is perfectly smooth while lower half is rough. A block starting from rest at the top of the…
NEET UG 2013 — Physics Mechanics
The upper half of an inclined plane of inclination θ is perfectly smooth while lower half is rough. A block starting from rest at the top of the plane will again come to rest at the bottom, if the coefficient of friction between the block and lower half of the plane is given by
Held on 30 Apr 2013 · Verified 9 Jul 2026.
Options
- A
μ=tanθ1
- B
μ=tanθ2
- C
μ=2tanθ
- D
μ=tanθ
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
