Capacitive Reactance XC=ωC1=2πfC1=2×3.14×50×10×10−61=3.141000 Vrms=210 Virms=XCVrms=XC210 Peak current =2ims=2×1000210×3.14=0.932≃0.93 A
A 10 μ F capacitor is connected to a 210 ~V, 50 ~Hz source as shown in figure. The peak current in the circuit is nearly (π=3.14) : NEET 2024…
NEET UG 2024 — Physics Electromagnetism
2024mcqmedium

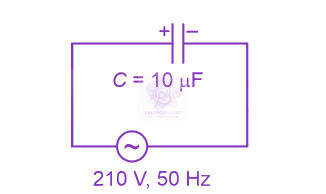

A 10μF capacitor is connected to a 210 V,50 Hz source as shown in figure. The peak current in the circuit is nearly (π=3.14) :
Official previous-year question
Held on 30 Apr 2024 · Verified 9 Jul 2026.
Options
- A
0.93 A
- B
1.20 A
- C
0.35 A
- D
0.58 A
