Let the direction of electric current in the circuit be i from AtoB. Using Kirchhoff's law in clockwise direction, we get
−(i×2)+10−5−(i×1)−(i×7)=0⇒5=10i⇒i=105=0.5A

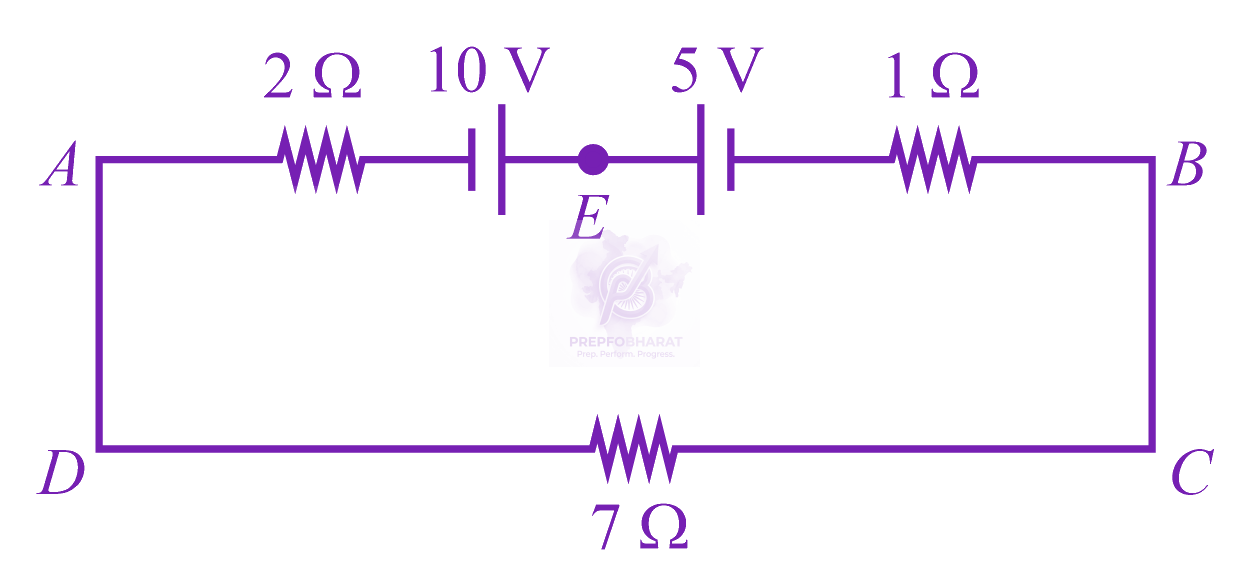

The magnitude and direction of the current in the following circuit is NEET 2023 Physics, Current Electricity — question figure
NEET UG 2023 — Physics Electromagnetism
2023mcqmedium
The magnitude and direction of the current in the following circuit is
Official previous-year question
Held on 30 Apr 2023 · Verified 9 Jul 2026.
Options
- A
1.5A fromB to A through E
- B
0.2Afrom B to A through E
- C
0.5A from A toB throughE
- D
95A from A to B through E
