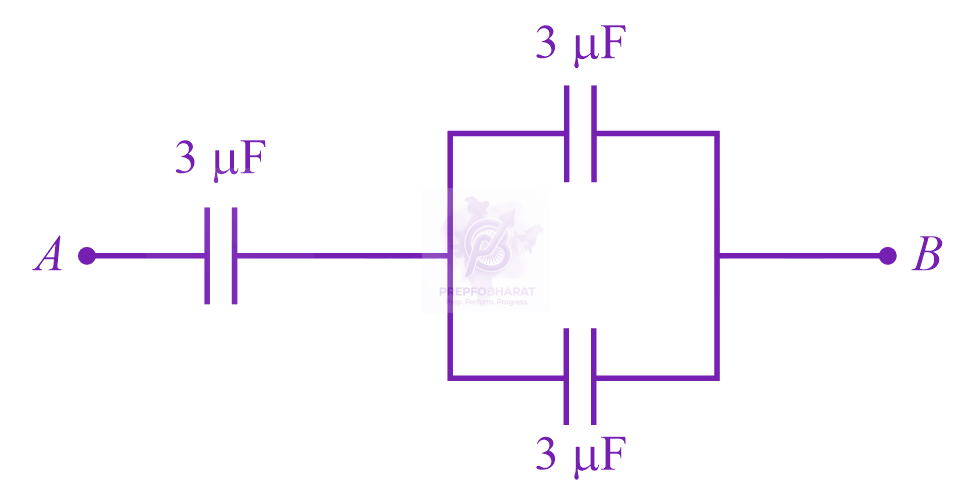

For parallel grouping(the loop part), equivalent capacitance can be written as
Cp=(3+3)μF=6μF.
Now, this part is in series with the left capacitor. So we can write
Ceq=(3+63×6)μF=2μF
The equivalent capacitance of the system shown in the following circuit is: NEET 2023 Physics, Capacitance — question figure
NEET UG 2023 — Physics Electromagnetism
2023mcqeasy
The equivalent capacitance of the system shown in the following circuit is:
Official previous-year question
Held on 30 Apr 2023 · Verified 9 Jul 2026.
Options
- A
9μF
- B
2μF
- C
3μF
- D
6μF
