Z1=R=10Ω [as, D.C. voltage is supplied] Z2=R2+(XC)2=(10)2+[2×π×50×π103×10−61]2 ⇒Z2=(10)2+(10)2=102⇒Z2>Z1 or Z1<Z2
If Z_1 and Z_2 are the impedances of the given circuits (a) and (b) as shown in figures, then choose the correct option. NEET 2023 Physics,…
NEET UG 2023 — Physics Electromagnetism
2023mcqmedium

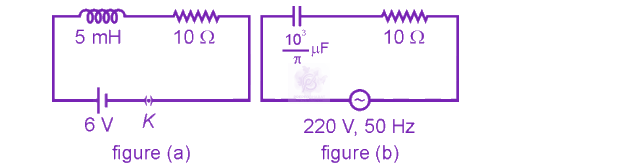

If Z1 and Z2 are the impedances of the given circuits (a) and (b) as shown in figures, then choose the correct option.
Official previous-year question
Held on 30 Apr 2023 · Verified 9 Jul 2026.
Options
- A
Z1=Z2
- B
Z1>Z2
- C
Z1<Z2
- D
Z1+Z2=20Ω
