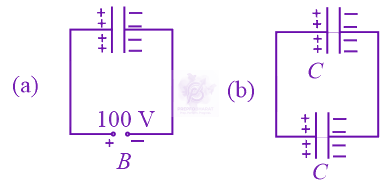

A capacitor of capacitance C=900pF is charged fully by 100V battery B as shown in figure (a). Then it is disconnected from the battery and connected to another uncharged capacitor of capacitance C=900pF as shown in figure (b). The electrostatic energy stored by the system (b) is
Held on 30 Apr 2022 · Verified 9 Jul 2026.
3.25×10−6J
2.25×10−6J
1.5×10−6J
4.5×10−6J
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
Two point charges +2μC and -2μC are placed 10 cm apart. The electric field at the midpoint is:
A constant voltage of 50 V is maintained between the points A and B of the circuit shown in the figure. The current through the branch CD of the circuit is :-
The electric potential at distance r from a point charge q is V = q/(4πε₀r). The electric field E is:
To an ac power supply of 220 V at 50 Hz , a resistor of $20 \Omega$, a capacitor of reactance $25 \Omega$ and an inductor of reactance $45 \Omega$ are connected is series. The corresponding current in the circuit and the phase angle between the current and the voltage is, respectively-
A wire of resistance R is cut into 8 equal pieces. From these pieces two equivalent resistances are made by adding four of these together in parallel. Then these two sets are added in series. The net effective resistance of the combination is :
