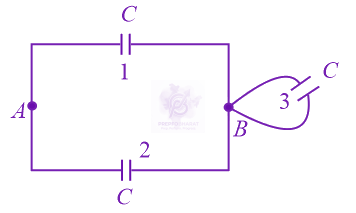

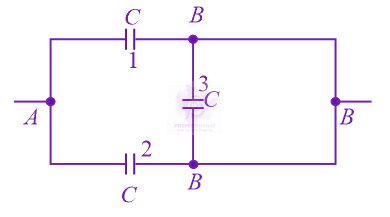

Redrawing the circuit between A&B,
Capacitor 3 can be eliminated
Capacitor 1 & 2 are in parallel.
CAB=C1+C2
=C+C
=2C

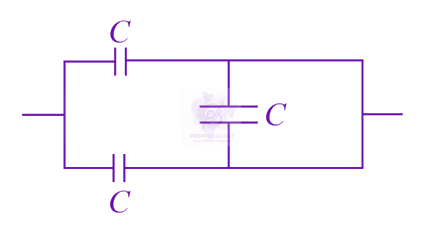

The equivalent capacitance of the combination shown in the figure is: NEET 2021 Physics, Capacitance — question figure
NEET UG 2021 — Physics Electromagnetism
2021mcqeasy
The equivalent capacitance of the combination shown in the figure is:
Official previous-year question
Held on 30 Apr 2021 · Verified 9 Jul 2026.
Options
- A
3C
- B
2C
- C
2C
- D
3C/2
