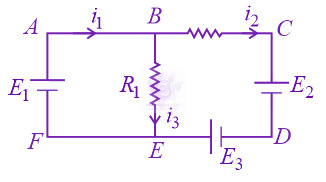

For the circuit given below, the Kirchhoff's loop rule for the loop BCDEB is given by the equation
Held on 30 Apr 2020 · Verified 9 Jul 2026.
−i2R2+E2−E3+i3R1=0
i2R2+E2−E3−i3R1=0
i2R2+E2+E3+i3R1=0
−i2R2+E2+E3+i3R1=0
