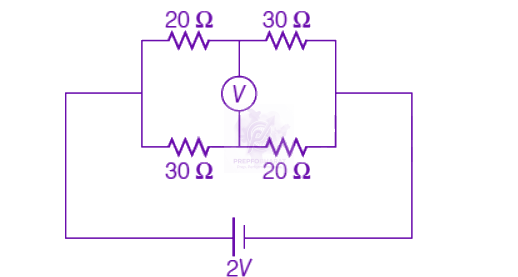

The reading of an ideal voltmeter in the circuit shown is
Held on 30 Apr 2019 · Verified 9 Jul 2026.
0.6 V
0 V
0.5 V
0.4 V
