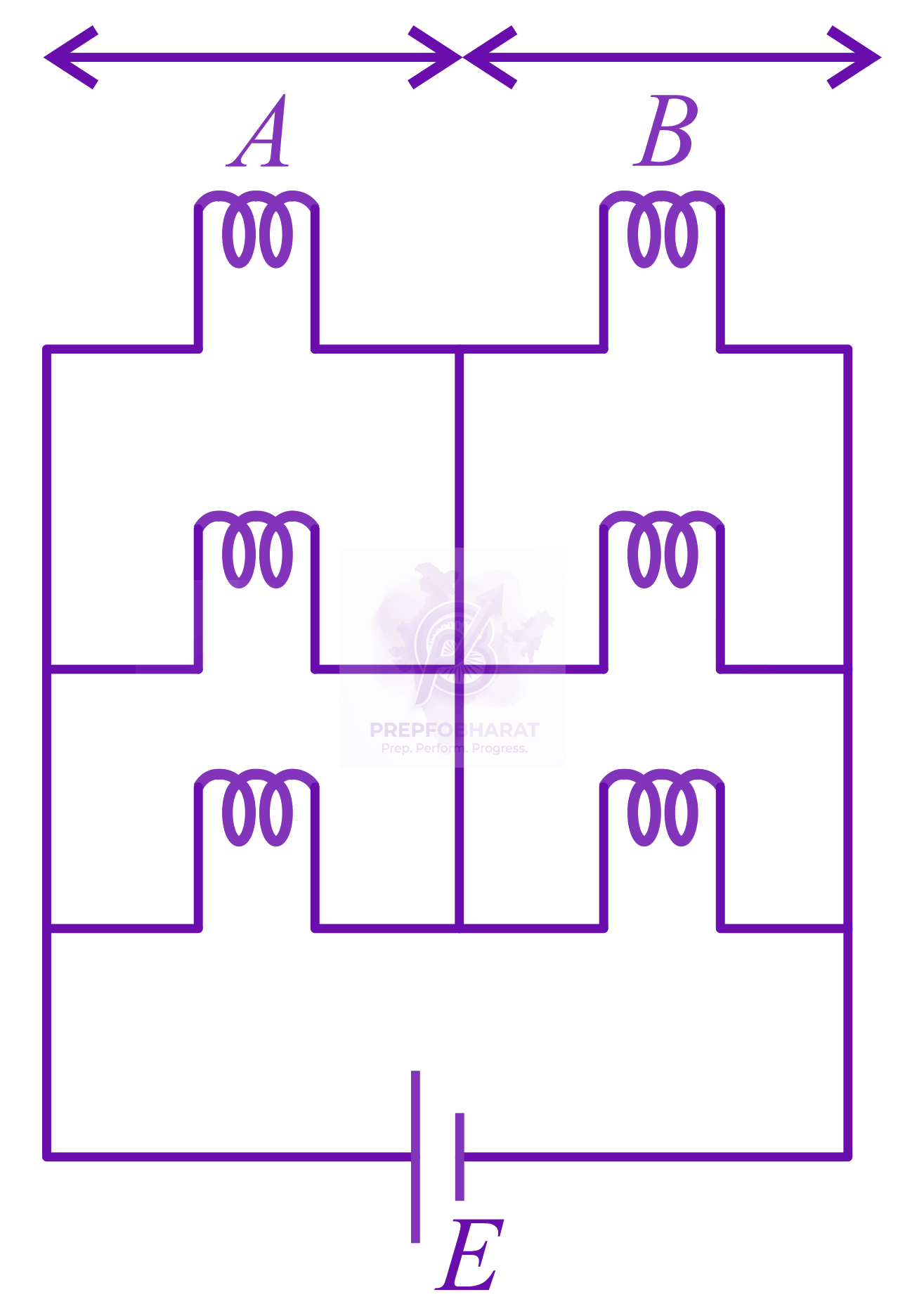

Six similar bulbs are connected as shown in the figure with a DC source of emf E, and zero internal resistance.

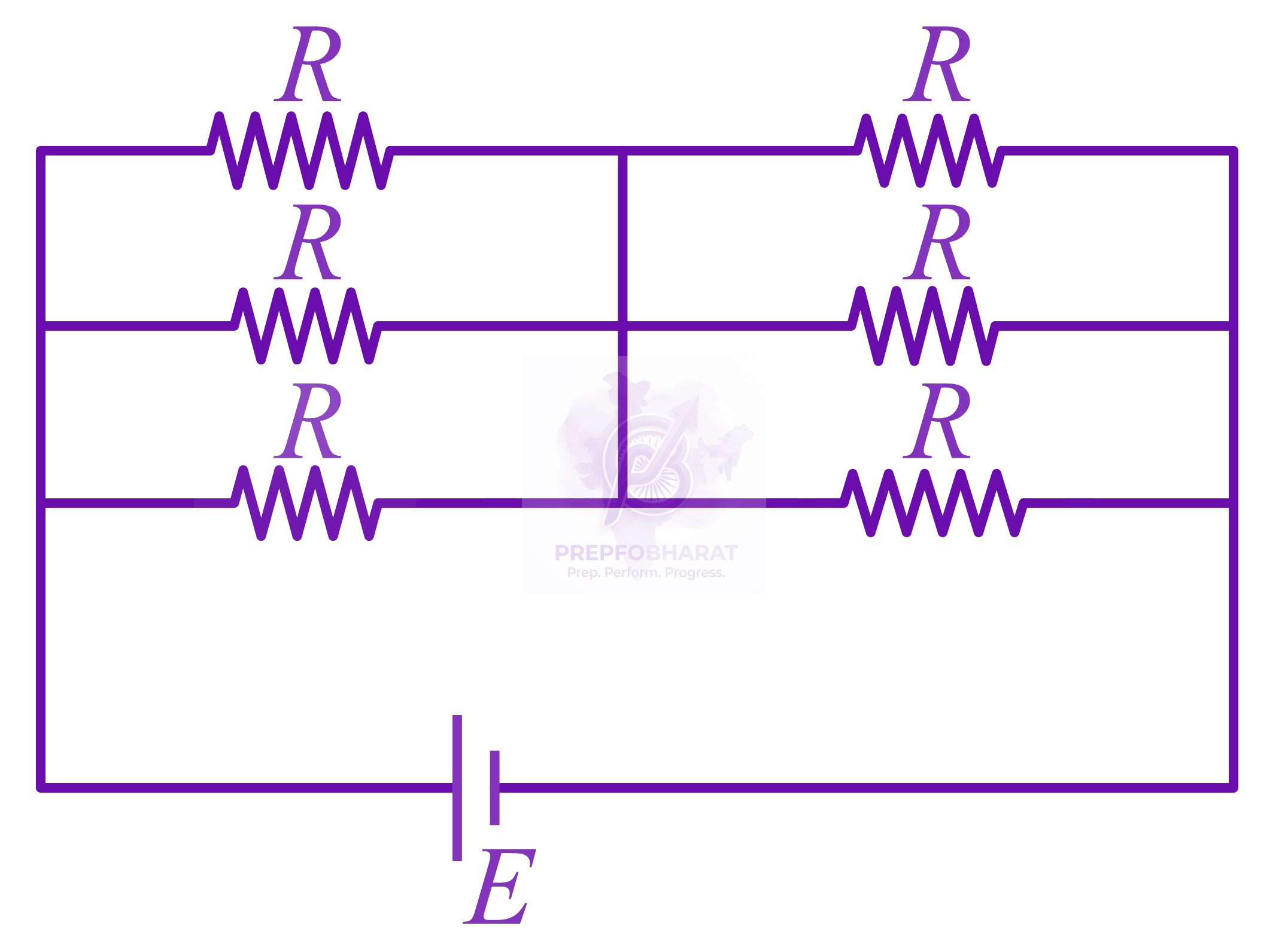

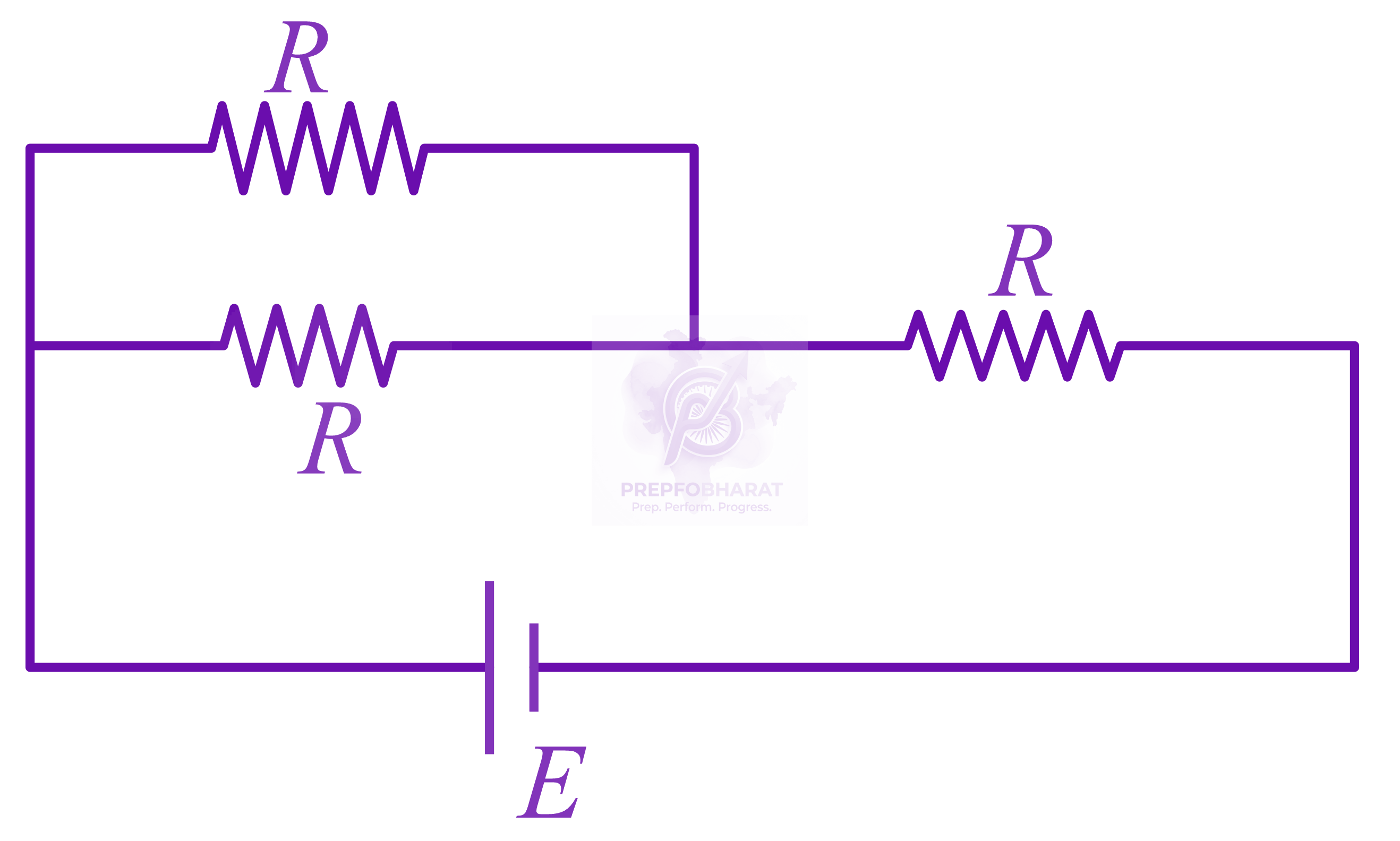

The ratio of power consumption by the bulbs when (i) all are glowing and (ii) in the situation when two from section A and one from section B are glowing will be,
Held on 30 Apr 2019 · Verified 9 Jul 2026.
4:9
9:4
1:2
2:1
