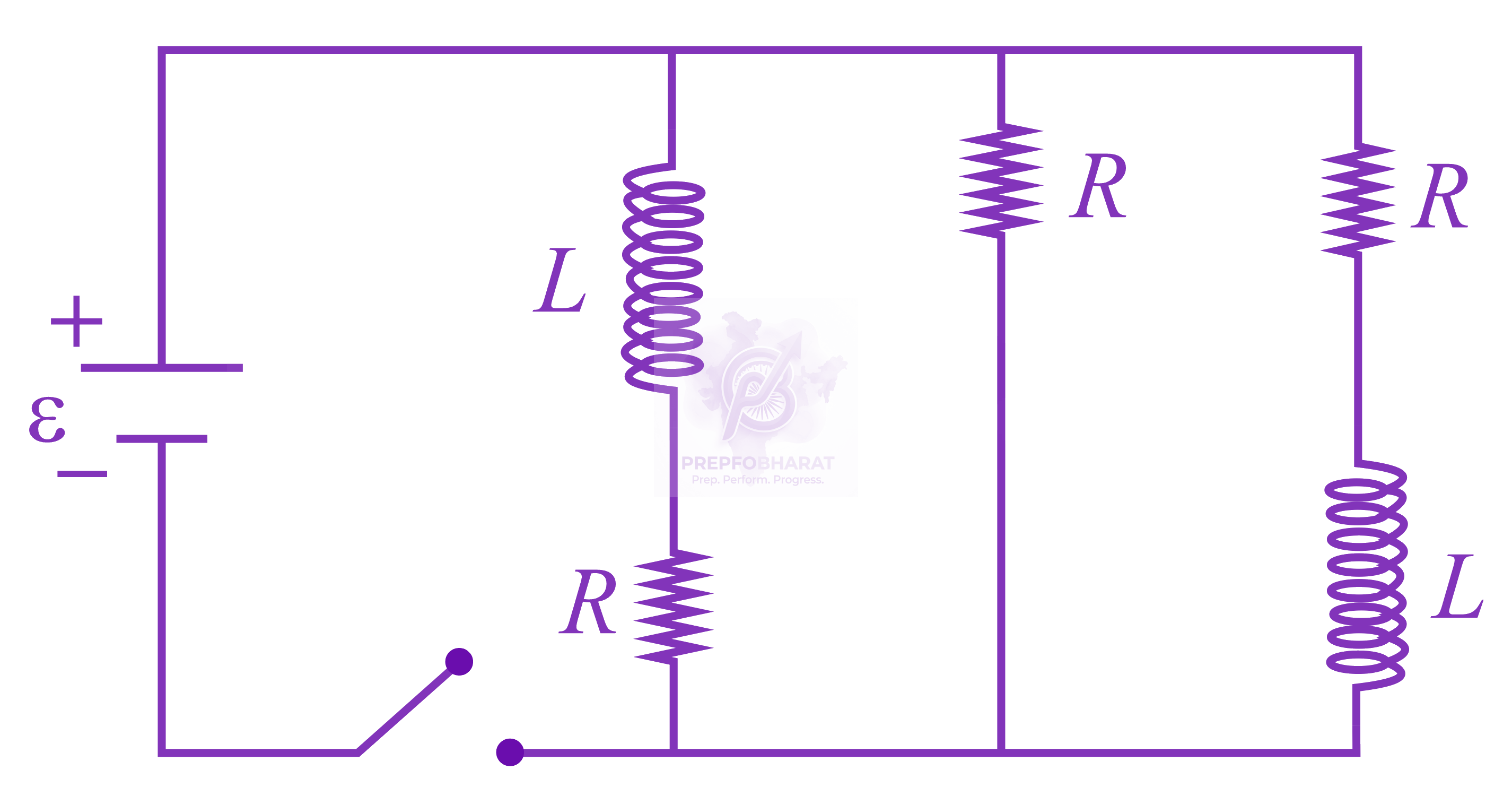

Figure shows a circuit contains three identical resistors with resistance R=9.0Ω each, two identical inductors with inductance L=2.0mH each, and an ideal battery with emf ϵ=18V. The current i through the battery just after the switch closed is:
Held on 30 Apr 2017 · Verified 9 Jul 2026.
2mA
0.2A
2A
0A
