as E∝L
E1−E2E1+E2=λ10λ50
E1+E2=5E1−5E2
6E2=4E1
23=E2E1

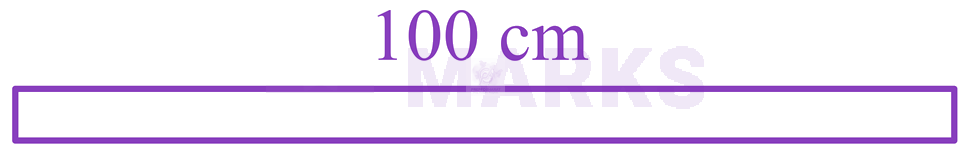

A potentiometer wire is 100cm long and a constant potential difference is maintained across it. Two cells are connected in series first to support one another and then in opposite direction. The balance points are obtained at 50cm and 10cm from the positive end of the wire in the two cases. The ratio of EMF's is :
Held on 30 Apr 2016 · Verified 9 Jul 2026.
5 : 1
5 : 4
3 : 4
3 : 2
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
Two point charges +2μC and -2μC are placed 10 cm apart. The electric field at the midpoint is:
A 2 amp current is flowing through two different small circular copper coils having radii ratio $1: 2$. The ratio of their respective magnetic moments will be
Two identical charged conducting spheres $A$ and $B$ have their centres separated by a certain distance. Charge on each sphere is q and the force of repulsion between them is $F$. A third identical uncharged conducting sphere is brought in contact with sphere A first and then with B and finally removed from both. New force of repulsion between spheres $A$ and $B$ (Radii of $A$ and $B$ are negligible compared to the distance of separation so that for calculating force between them they can be considered as point charges) is best given as :
The current passing through the battery in the given circuit, is :
An electron (mass $9 \times 10^{-31} \mathrm{~kg}$ and charge $1.6 \times 10^{-19} \mathrm{C}$ ) moving with speed $\mathrm{c} / 100(\mathrm{c}=$ speed of light) is injected into a magnetic field $\vec{B}$ of magnitude $9 \times 10^{-4} \mathrm{~T}$ perpendicular to its direction of motion. We wish to apply an uniform electric field $\vec{E}$ together with the magnetic field so that the electron does not deflect from its path. Then (speed of light $\mathrm{c}=3 \times 10^8 \mathrm{~ms}^{-1}$ )
