Rec=σ1Al+σ1Al=σeqAeqleq
σeqA2l=Al(σ1σ2σ1+σ2)
\sigma eq=2\sigma 1\sigma 2\sigma 1+\sigma 2
NEET UG 2015 — Physics Electromagnetism

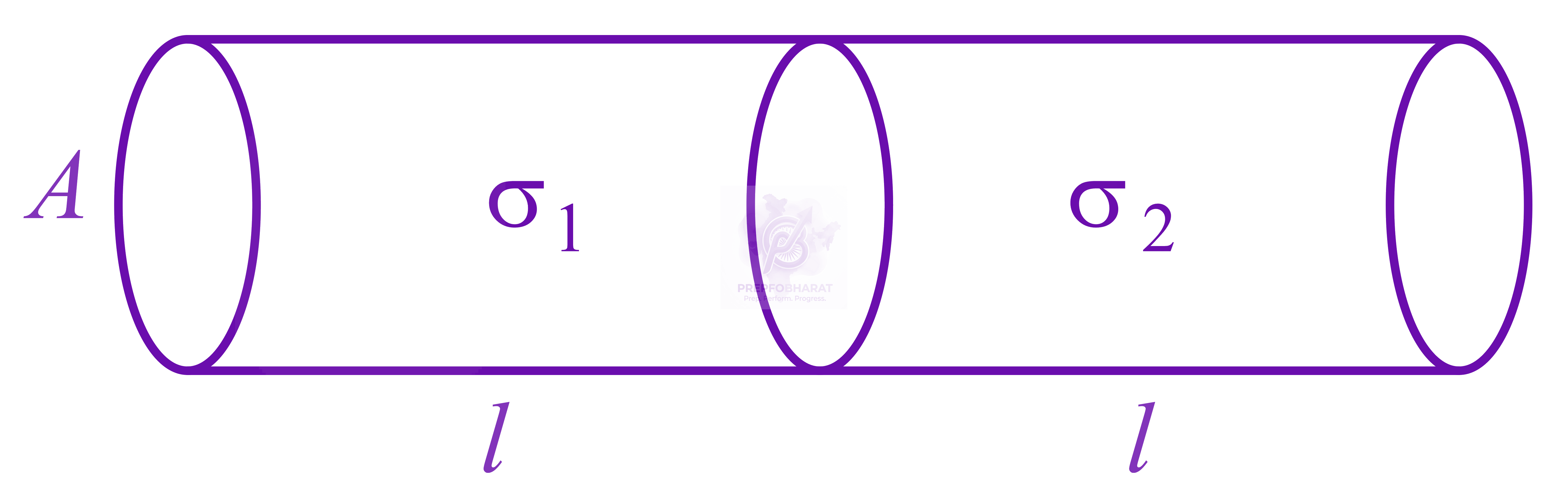

Two metal wires of identical dimensions are connected in series. If v1 and v2 are the conductivities of the metal wires respectively, the effective conductivity if the combination is:
Held on 30 Apr 2015 · Verified 9 Jul 2026.
2σ1σ2σ1+σ2
σ1σ2σ1+σ2
σ1+σ2σ1σ2
σ1+σ22σ1σ2
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
Two point charges +2μC and -2μC are placed 10 cm apart. The electric field at the midpoint is:
A parallel plate capacitor made of circular plates is being charged such that the surface charge density on its plates is increasing at a constant rate with time. The magnetic field arising due to displacement current is :
Two identical charged conducting spheres $A$ and $B$ have their centres separated by a certain distance. Charge on each sphere is q and the force of repulsion between them is $F$. A third identical uncharged conducting sphere is brought in contact with sphere A first and then with B and finally removed from both. New force of repulsion between spheres $A$ and $B$ (Radii of $A$ and $B$ are negligible compared to the distance of separation so that for calculating force between them they can be considered as point charges) is best given as :
The electric potential at distance r from a point charge q is V = q/(4πε₀r). The electric field E is:
The current passing through the battery in the given circuit, is :
Work through every NEET UG Electromagnetism PYQ, year by year.
