NEET UG 2014 — Physics Electromagnetism

2014mcqeasy

In an ammeter $0.2%$ of main current passes through the galvanometer. If resistance of galvanometer is $G,$ the resistance of ammeter will be:

Official previous-year question

Held on 30 Apr 2014 · Verified 9 Jul 2026.

Options

A
$\frac{1}{499}G$
B
$\frac{499}{500}G$
C
$\frac{1}{500}G$
D
$\frac{500}{499}G$

Did you get this right?

Solution

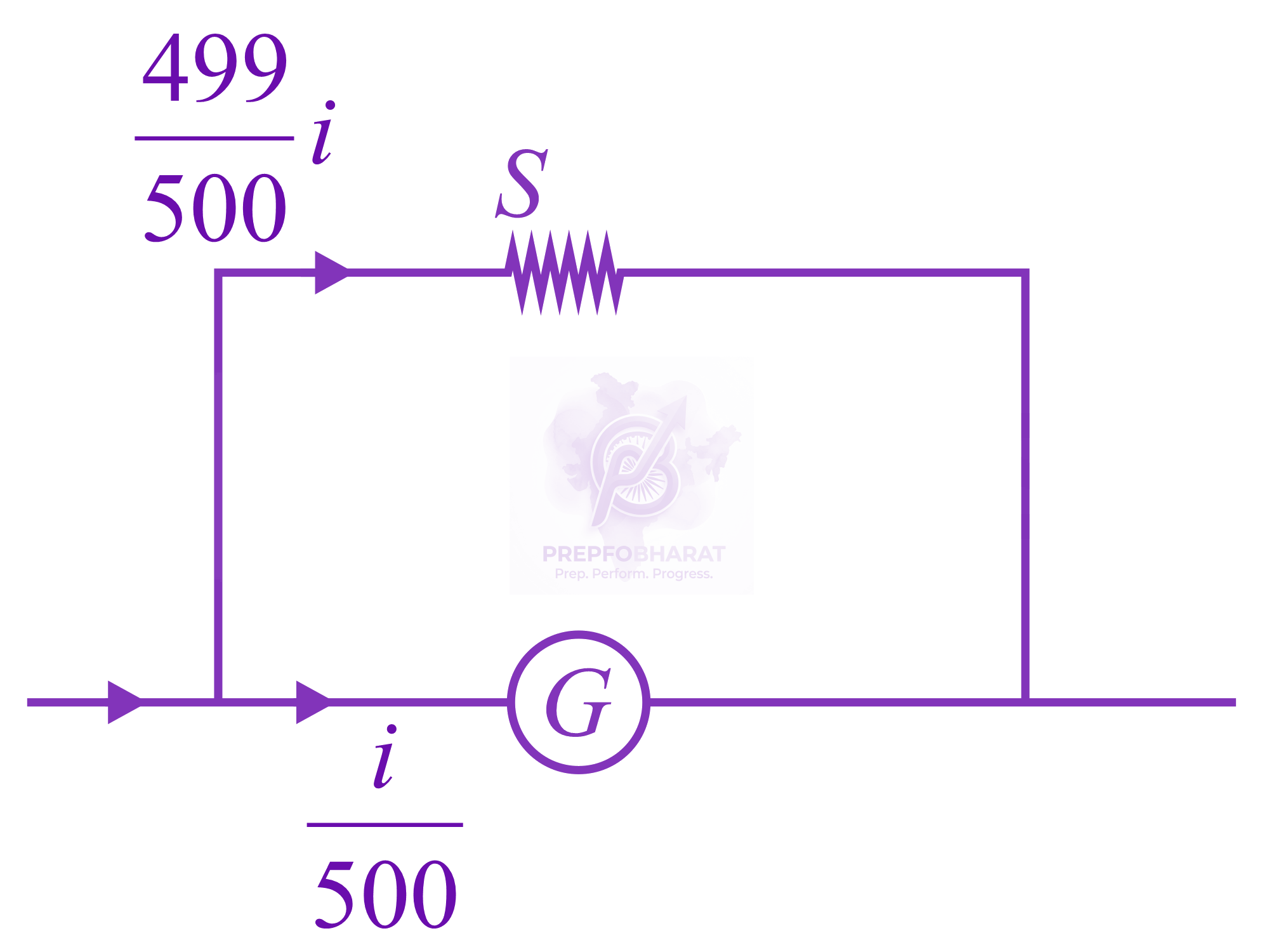

As shown in figure a shunt $S$ is connected in parallel with the galvanometer to convert it into the ammeter, let $G$ is the resistant of the galvanometer. Where $I$ is the current in the circuit as shown, according to question $0\cdot 2%$ current passing through the galvanometer, i.e.,

NEET 2014 Physics, Current Electricity — solution figure

${I}_{G}=0\cdot 2%ofI=\frac{0\cdot 2}{100}I=\frac{I}{500}$ ;

so, the current through the shunt is $I={I}_{G}+{I}_{S}\Rightarrow {I}_{S}=I-{I}_{G} \Rightarrow {I}_{S}=I-\frac{1}{500}=\frac{499}{500}I$

As $(G)$ and the shunt $(S)$ are in parallel combination ,

${V}_{G}={V}_{S}$

${i}_{g}{R}_{g}={i}_{s}{R}_{s}\Rightarrow (\frac{i}{500})(G)=(\frac{499}{500}i)(S)$

$\Rightarrow S=\frac{G}{499}$

Equivalent resistance of the ammeter

$\frac{1}{{R}_{eq}}=\frac{1}{G}+\frac{1}{\frac{G}{499}}\Rightarrow {R}_{eq}=\frac{G}{500}$
