In ohm's law, we check V=IR where I is the corrent flowing through a resistor and V is the potential difference across that resistor. Only option (a) fits the above criteria. Remember that ammeter is connected in series with resistance and voltmeter parallel with the resistance.

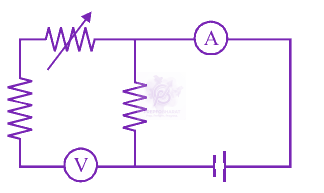

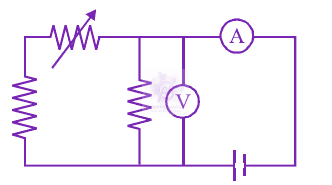

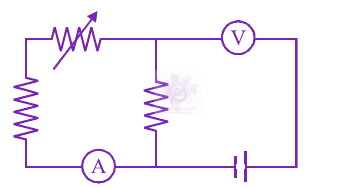

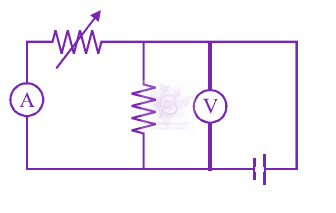

Correct set up to verify Ohm's law is :
