The partial pressure of a component in a binary mixture follows Raoult's law for ideal solutions: Pi=xi⋅P°i, which is linear. However, the acetone-CS₂ system exhibits positive deviation from ideality due to different molecular interactions. When acetone and CS₂ mix, the hydrogen bonding between acetone molecules is disrupted, and the weaker interactions between unlike molecules allow molecules to escape more easily into the vapor phase. This results in partial pressures higher than predicted by Raoult's law, causing the pressure vs mole fraction curve to bow upward above the ideal line. Graph (1) shows this positive deviation curve correctly.
JEE Main 2026 — Chemistry Physical Chemistry
2026mcqmedium

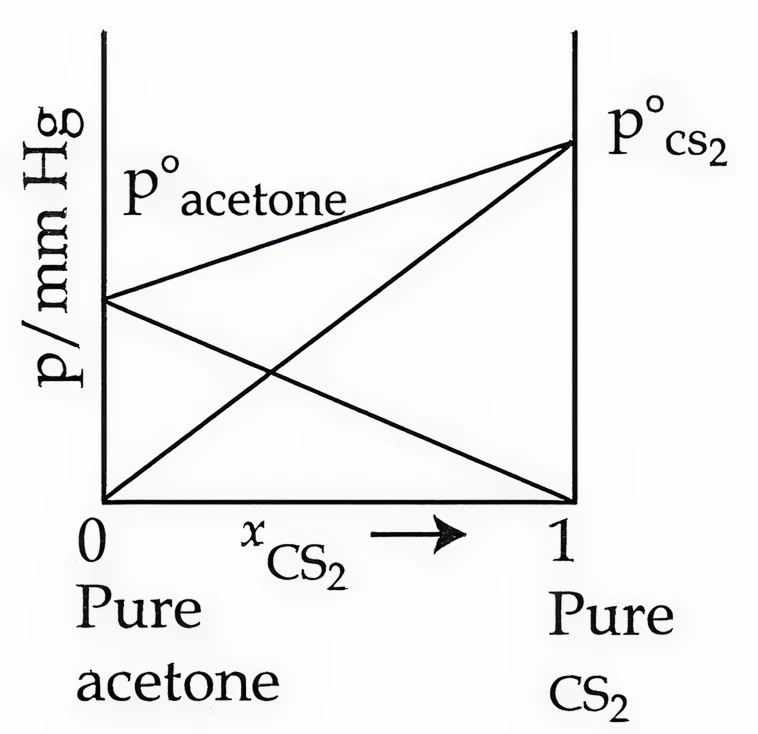

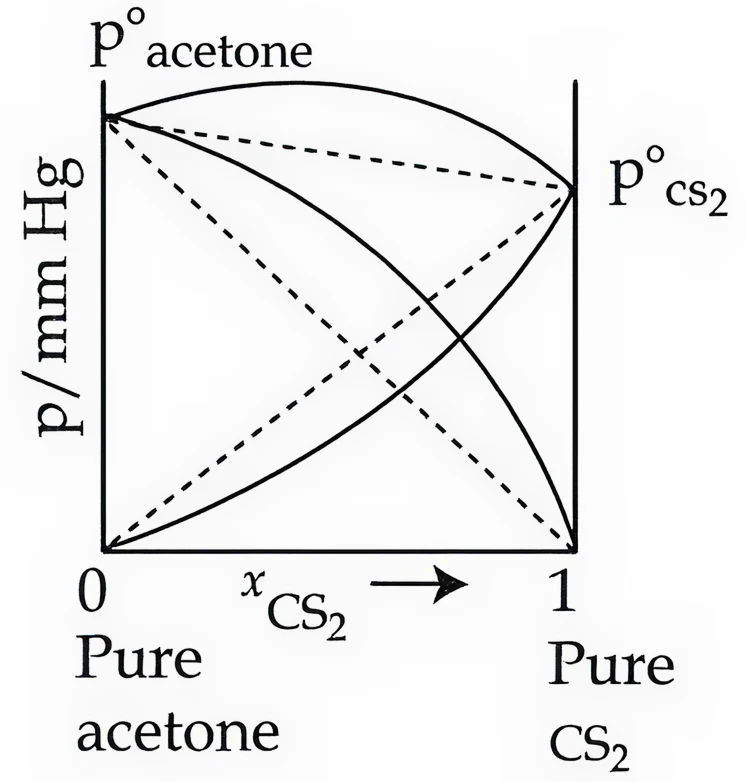

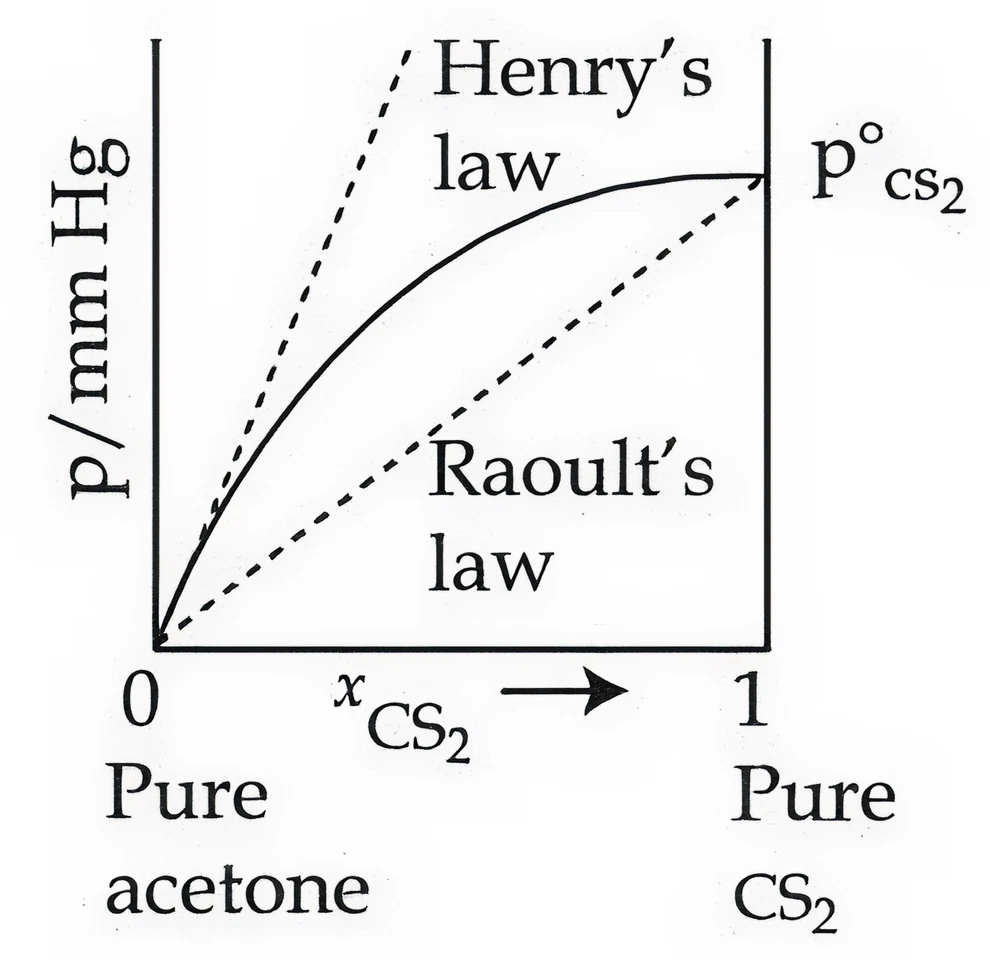

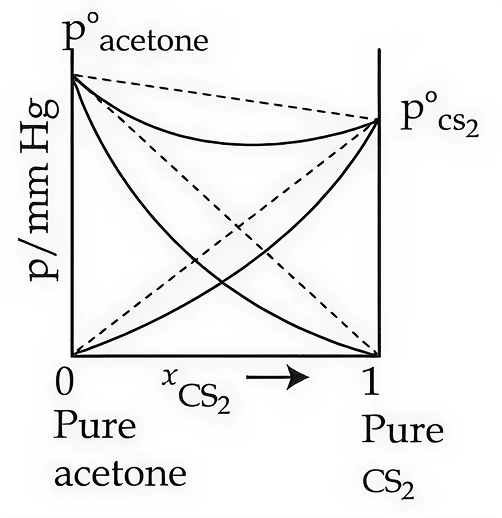

Which one of the following graphs accurately represents the plot of partial pressure of CS2 vs its mole fraction in a mixture of acetone and CS2 at constant temperature?
Official previous-year question
Held on 23 Jan 2026 · Verified 6 Jul 2026.
Options
- A
- B
- C
- D
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
JEE Main Physical Chemistry in other years
More JEE Main Physical Chemistry questions
The ratio of mass percentage (w/w) of C : H in a hydrocarbon is $12 : 1$. It has two carbon atoms. The weight (in g) of $CO_2(g)$ formed when $3.38$ g of this hydrocarbon is completely burnt in oxygen is : (Given : Molar mass in g mol$^{-1}$ C : 12, H : 1, O : 16)
2026medium
The correct order of total number of atoms present in<br>(A) $2$ moles of cyclohexane<br>(B) $684$ g of sucrose<br>(C) $90.8$ L of dihydrogen at STP<br>is:
2026medium
An oxide of iron contains $69.9\%$ iron, its empirical formula, is: (Given: Molar mass of Fe and O are $56$ and $16$ g mol$^{-1}$ respectively.)
2026easy
What volume of hydrogen gas at STP would be liberated by action of $50\text{ mL}$ of $H_2SO_4$ of $50\%$ purity (density $= 1.3\text{ g mL}^{-1}$) on $20\text{ g}$ of zinc ?<br>Given : Molar mass of H, O, S, Zn are $1, 16, 32, 65\text{ g mol}^{-1}$ respectively.
2026medium
For the given reaction:<br>$\mathrm{CaCO}_{3}+2 \mathrm{HCl} \longrightarrow \mathrm{CaCl}_{2}+\mathrm{H}_{2} \mathrm{O}+\mathrm{CO}_{2}$<br>If $90 \mathrm{~g} \mathrm{CaCO}_{3}$ is added to 300 mL of HCl which contains $38.55 \% \mathrm{HCl}$ by mass and has density $1.13 \mathrm{~g} \mathrm{~mL}^{-1}$, then which of the following option is correct ?<br>Given molar mass of $\mathrm{H}, \mathrm{Cl}, \mathrm{Ca}$ and O are 1, 35.5, 40 and $16 \mathrm{~g} \mathrm{~mol}^{-1}$ respectively.
2026medium
