This graph shows one radial node
Formula of radial node =n−l−1 ; angular node =l ; total node =n−1
n= Principal quantum number
l= Azimuthal quantum number
Radial nodes:
for 1s =n−l−1=1−0−1=0
for 2s=2−0−1=1
for 2p=2−1−1=0
for 3s=3−0−1=2

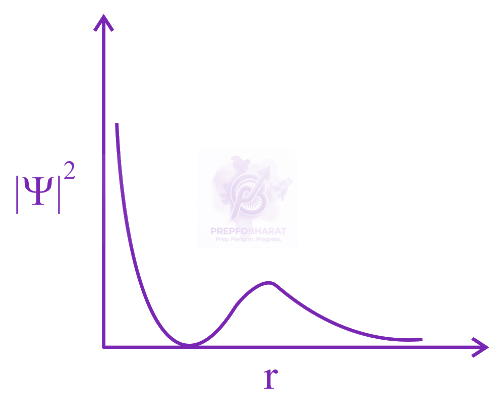

The graph between ∣ψ∣2 and r (radical distance) is shown below. This represents:

Held on 10 Apr 2019 · Verified 6 Jul 2026.
3s orbital
2p orbital
2s orbital
1s orbital
