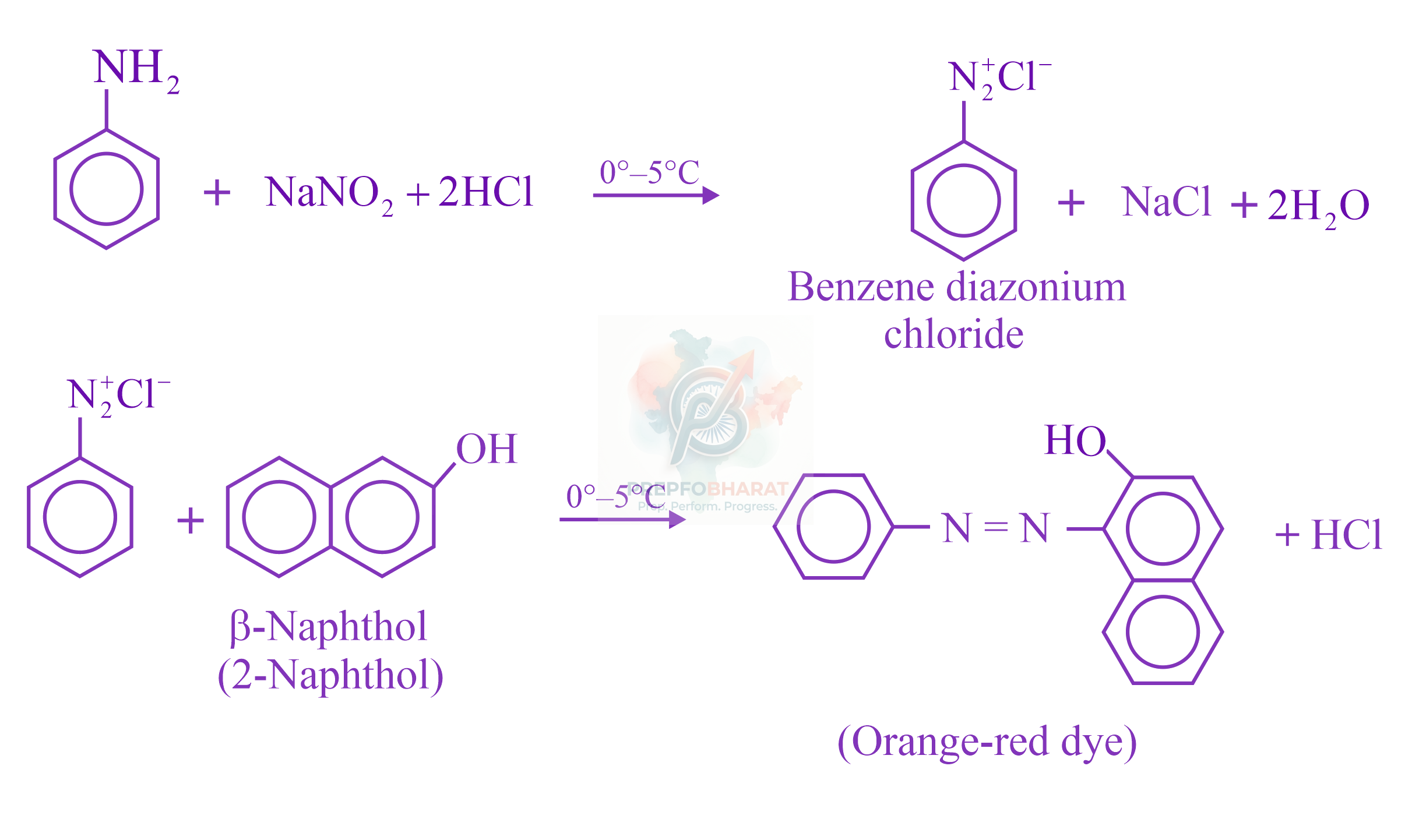

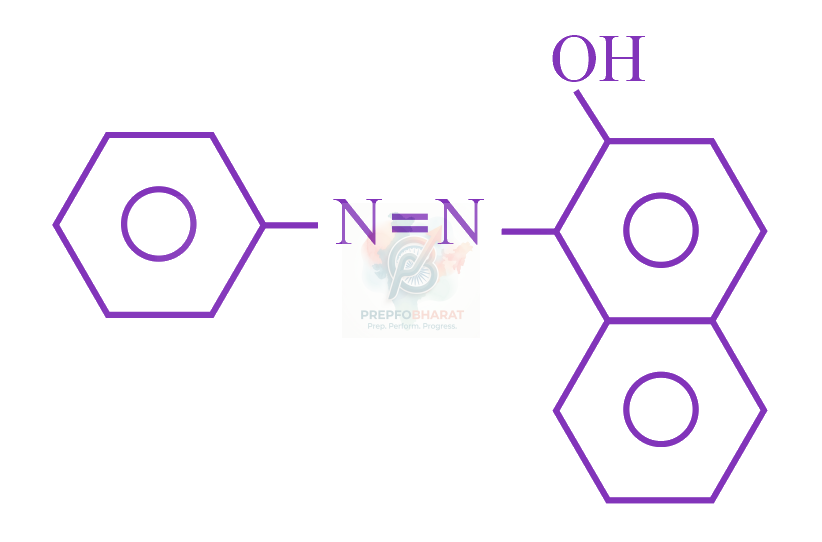

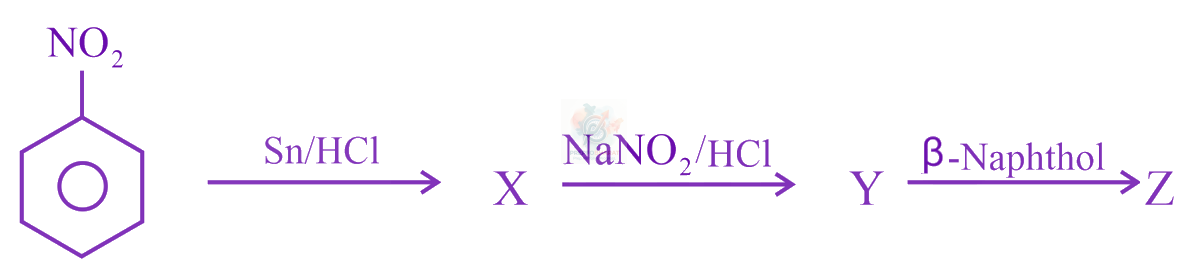

First step involves the reduction of nitrobenzene to aniline in presence of SninHCl. Second step is a diazotization reaction where aniline is converted to benzenediazonium chloride in presence of nitrous acid, and third step involves the reaction between benzene diazonium chloride and beta-naphthol to form 1-phenylazo-2-naphthol an orange red dye.
