JEE Main 2023 — Chemistry Inorganic Chemistry

2023integermedium

The number of species trom the following carrying a single lone pair on central atom Xenon is

${\mathrm{XeF}}_{5}^{+},{\mathrm{XeO}}_{3},{\mathrm{XeO}}_{2}{F}_{2},{\mathrm{XeF}}_{5}^{-},{\mathrm{XeO}}_{3}{F}_{2},{\mathrm{XeOF}}_{4},{\mathrm{XeF}}_{4}$

Official previous-year question

Held on 8 Apr 2023 · Verified 6 Jul 2026.

Did you get this right?

Solution

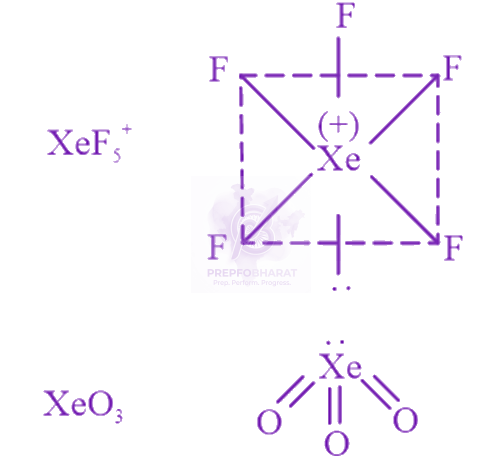

JEE Main 2023 Chemistry, Chemical Bonding and Molecular Structure — solution figure 1

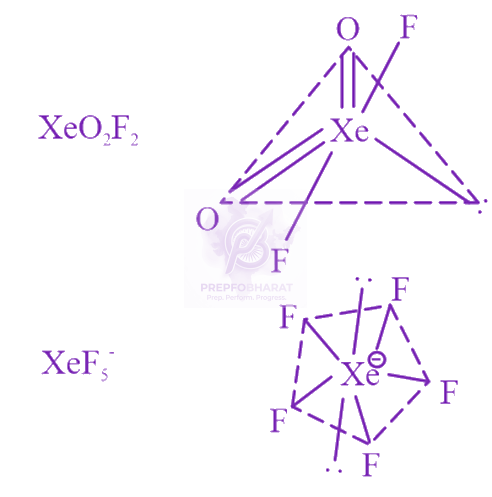

JEE Main 2023 Chemistry, Chemical Bonding and Molecular Structure — solution figure 2

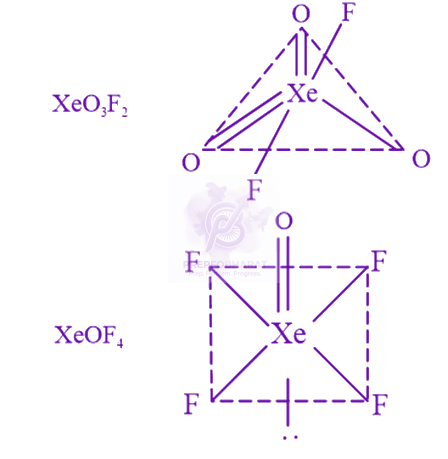

JEE Main 2023 Chemistry, Chemical Bonding and Molecular Structure — solution figure 3

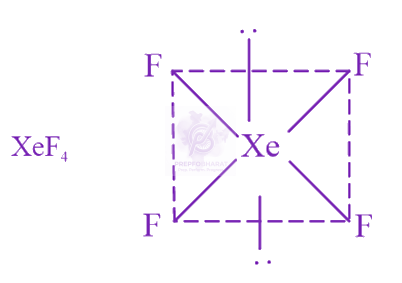

JEE Main 2023 Chemistry, Chemical Bonding and Molecular Structure — solution figure 4

The central $\mathrm{Xe}$ atom in ${\mathrm{XeO}}_{3}$ has three bonding domains and one lone pair of electrons. Hence, the electron geometry is tetrahedral and molecular geometry is pyramidal.

${\mathrm{XeO}}_{2}{F}_{2}$ is trigonal bipyramidal and the shape is a see-saw.

${\mathrm{XeOF}}_{4}$ is in square pyramidal shape.

So, ${\mathrm{XeF}}_{5}^{+},{\mathrm{XeO}}_{3},{\mathrm{XeO}}_{2}{F}_{2}$ and ${\mathrm{XeOF}}_{4}$ have single lone pair on central atom.

Your note

JEE Main Inorganic Chemistry in other years

Inorganic Chemistry 2026 Inorganic Chemistry 2025 Inorganic Chemistry 2024 Inorganic Chemistry 2022 Inorganic Chemistry 2021 Inorganic Chemistry 2020 Inorganic Chemistry 2019 Inorganic Chemistry 2018 Inorganic Chemistry 2017 Inorganic Chemistry 2016 Inorganic Chemistry 2015 Inorganic Chemistry 2014

Keep practicing Inorganic Chemistry

Work through every JEE Main Inorganic Chemistry PYQ, year by year.

Browse all Chemistry topics

JEE Main 2023 — Chemistry Inorganic Chemistry

2023integermedium

The number of species trom the following carrying a single lone pair on central atom Xenon is

${\mathrm{XeF}}_{5}^{+},{\mathrm{XeO}}_{3},{\mathrm{XeO}}_{2}{F}_{2},{\mathrm{XeF}}_{5}^{-},{\mathrm{XeO}}_{3}{F}_{2},{\mathrm{XeOF}}_{4},{\mathrm{XeF}}_{4}$

Official previous-year question

Held on 8 Apr 2023 · Verified 6 Jul 2026.

Did you get this right?

Solution

JEE Main 2023 Chemistry, Chemical Bonding and Molecular Structure — solution figure 1

JEE Main 2023 Chemistry, Chemical Bonding and Molecular Structure — solution figure 2

JEE Main 2023 Chemistry, Chemical Bonding and Molecular Structure — solution figure 3

JEE Main 2023 Chemistry, Chemical Bonding and Molecular Structure — solution figure 4

The central $\mathrm{Xe}$ atom in ${\mathrm{XeO}}_{3}$ has three bonding domains and one lone pair of electrons. Hence, the electron geometry is tetrahedral and molecular geometry is pyramidal.

${\mathrm{XeO}}_{2}{F}_{2}$ is trigonal bipyramidal and the shape is a see-saw.

${\mathrm{XeOF}}_{4}$ is in square pyramidal shape.

So, ${\mathrm{XeF}}_{5}^{+},{\mathrm{XeO}}_{3},{\mathrm{XeO}}_{2}{F}_{2}$ and ${\mathrm{XeOF}}_{4}$ have single lone pair on central atom.
