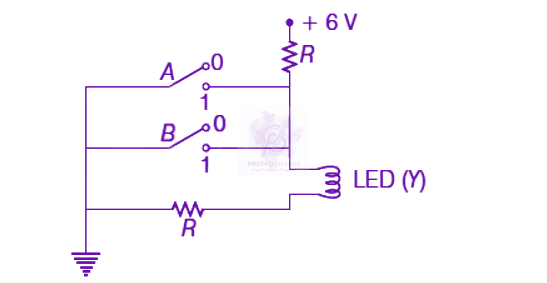

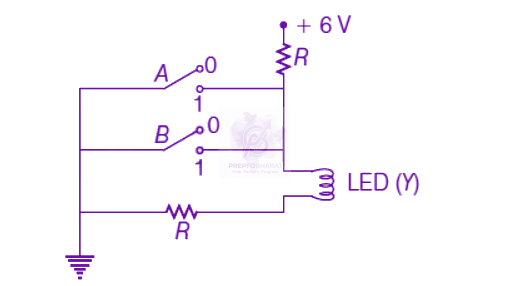

The circuit diagram shown here corresponds to the logic gate,
Held on 30 Apr 2019 · Verified 9 Jul 2026.
NOR
AND
OR
NAND
