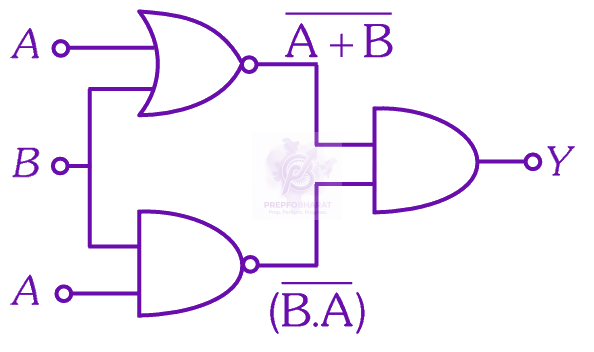

Y=(A+B)⋅(A⋅B) ⇒A⋅B⋅(A+B)⇒A⋅B⋅A+A⋅B⋅B⇒A⋅B+A⋅B⇒A⋅B=(A+B) Behaves as NOR gate
The output ( Y) of the given logic implementation is similar to the output of an/a gate. NEET 2025 Physics, Semiconductors — question figure
NEET UG 2025 — Physics Modern Physics
2025mcqmedium
The output (Y) of the given logic implementation is similar to the output of an/a _____ gate.
Official previous-year question
Held on 30 Apr 2025 · Verified 9 Jul 2026.
Options
- A
AND
- B
NAND
- C
OR
- D
NOR
