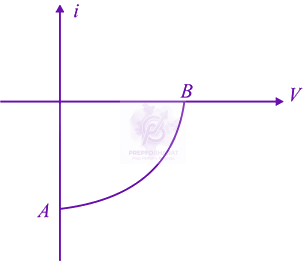

The given graph is V - I characteristic curve for a solar cell, where A i.e point where V=0 represents open circuit voltage of solar cell and B i.e. the point where i=0 represents short circuit current.
The given graph represents V - I characteristic for a semiconductor device. NEET 2014 Physics, Semiconductors — question figure Which of the…
NEET UG 2014 — Physics Modern Physics
2014mcqeasy
The given graph represents V - I characteristic for a semiconductor device.
Which of the following statement is correct?
Official previous-year question
Held on 30 Apr 2014 · Verified 9 Jul 2026.
Options
- A
It is V - I characteristic for solar cell where, point A represents open circuit voltage and point B short circuit current
- B
It is for a solar cell and points A and B represent open circuit voltage and current, respectively
- C
It is for a photodiode and points A and B represent open circuit voltage and current respectively
- D
It is for a LED and points A and B represent open circuit voltage and short circuit current, respectively
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
