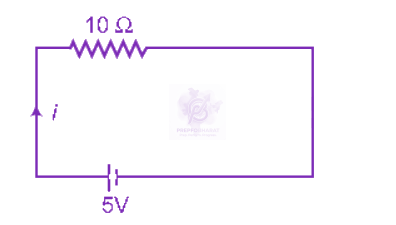

Here in circuit D1 is forward bias and D2 is reverse bias. Current will flow only in diode D1
The current supplied by the battery i=105=0.5 A
NEET UG 2012 — Physics Modern Physics
2012mcqeasy

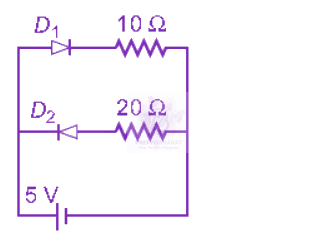

Two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is
Official previous-year question
Held on 30 Apr 2012 · Verified 9 Jul 2026.
Options
- A
0.75 A
- B
zero
- C
0.25 A
- D
0.5 A
Did you get this right?
Sign in to track your attempts and accuracy.
Your note
Sign in to keep a private note on this question. Nothing you write is ever public.
