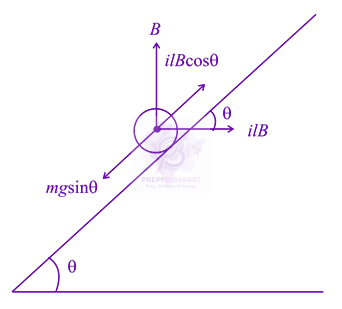

For equilibrium of conductor
ilBcosθ=mgsinθ
i=lBmgtanθ=(lm)Bgtanθ
i=0.5×0.259.8×31=11.3A.
NEET UG 2018 — Physics Electromagnetism
A metallic rod of mass per unit length 0.5kgm−1 is lying horizontally on a smooth inclined plane which makes an angle 30o with the horizontal. The rod is not allowed to slide down by flowing a current through it when a magnetic field of induction 0.25T is acting on it in the vertical direction. The current flowing in the rod to keep it stationary is
Held on 30 Apr 2018 · Verified 9 Jul 2026.
14.76A
5.98A
7.14A
11.32A
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
Two point charges +2μC and -2μC are placed 10 cm apart. The electric field at the midpoint is:
A parallel plate capacitor made of circular plates is being charged such that the surface charge density on its plates is increasing at a constant rate with time. The magnetic field arising due to displacement current is :
Two identical charged conducting spheres $A$ and $B$ have their centres separated by a certain distance. Charge on each sphere is q and the force of repulsion between them is $F$. A third identical uncharged conducting sphere is brought in contact with sphere A first and then with B and finally removed from both. New force of repulsion between spheres $A$ and $B$ (Radii of $A$ and $B$ are negligible compared to the distance of separation so that for calculating force between them they can be considered as point charges) is best given as :
The electric potential at distance r from a point charge q is V = q/(4πε₀r). The electric field E is:
The current passing through the battery in the given circuit, is :
