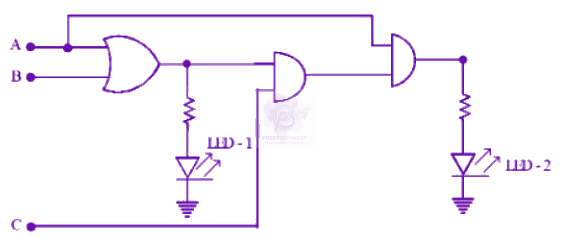

For the given logic circuit, which of the following inputs combination will make both LED$-1$ and LED$-2$ to glow? ![JEE Main 2026 Physics, Semiconductors — question figure](https://prepforbharat.s3.ap-south-1.amazonaws.com/exam/615f0e999476412f48314daf/Physics/images/Semiconductors/69d8073481239f6567c4f2fd/question_1__q_69d8073481239f6567c4f2fd__cdn-question-pool.getmarks.app__05APRS1__q45_d1__0847c50074_final_ppt_sync.png)

JEE Main 2026 — Physics Modern Physics

2026mcqeasy

For the given logic circuit, which of the following inputs combination will make both LED $-1$ and LED $-2$ to glow?

JEE Main 2026 Physics, Semiconductors — question figure

Official previous-year question

Held on 5 Apr 2026 · Verified 6 Jul 2026.

Options

A
$A = 0, B = 1, C = 1$
B
$A = 1, B = 0, C = 0$
C
$A = 1, B = 0, C = 1$
D
$A = 1, B = 1, C = 0$

Did you get this right?

Solution

Let the output of the OR gate be $Y_1$ .

$Y_1 = A + B$

For LED-1 to glow, $Y_1$ must be $1$ , which means $A + B = 1$ .

Let the output of the first AND gate be $Y_2$ .

$Y_2 = Y_1 \cdot C = (A + B) \cdot C$

Let the output of the second AND gate be $Y_3$ .

$Y_3 = A \cdot Y_2 = A \cdot (A + B) \cdot C$

For LED-2 to glow, $Y_3$ must be $1$ .

Simplifying the Boolean expression for $Y_3$ :

$Y_3 = (A \cdot A + A \cdot B) \cdot C$

$Y_3 = (A + AB) \cdot C$

$Y_3 = A(1 + B) \cdot C$

$Y_3 = A \cdot C$

For $Y_3 = 1$ , we require $A = 1$ and $C = 1$ .

If $A = 1$ , then $Y_1 = 1 + B = 1$ for any value of $B$ , satisfying the condition for LED-1 to glow.

From the given options, the combination $A = 1, B = 0, C = 1$ satisfies these conditions.

Answer: $A = 1, B = 0, C = 1$
