$\begin{array}{c|c|c}
x & y & \
\hline 0 & 0 & 1 \
0 & 1 & 0 \
1 & 0 & 0 \
1 & 1 & 0
\end{array}$
The output of the circuit is low (zero) for : JEE Main 2025 Physics, Semiconductors — question figure (A) X=0, Y=0 (B) X=0, Y=1 (C) X=1, Y=0 (D) X=1,…
JEE Main 2025 — Physics Modern Physics
2025mcqeasy

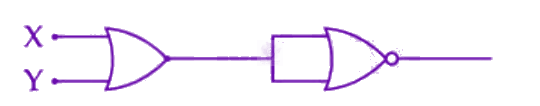

The output of the circuit is low (zero) for :
(A) X=0,Y=0 (B) X=0,Y=1 (C) X=1,Y=0 (D) X=1,Y=1 Choose the correct answer from the options given below :
Official previous-year question
Held on 24 Jan 2025 · Verified 6 Jul 2026.
Options
- A
(B), (C) and (D) only
- B
(A), (B) and (C) only
- C
(A), (C) and (D) only
- D
(A), (B) and (D) only
