∵A⋅C+A+C≡NOR gate
JEE Main 2025 — Physics Modern Physics

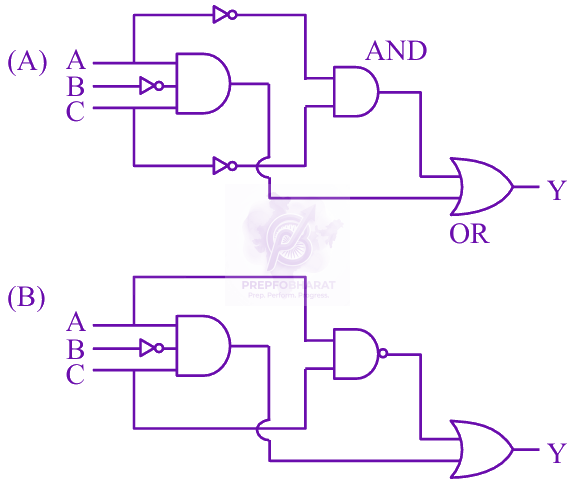

The Boolean expression Y=ABC+AC can be realised with which of the following gate configurations.
A. One 3-input AND gate, 3 NOT gates and one 2input OR gate, One 2-input AND gate,
B. One 3-input AND gate, 1 NOT gate, One 2input NOR gate and one 2-input OR gate
C. 3-input OR gate, 3 NOT gates and one 2-input AND gate
Choose the correct answer from the options given below
Held on 4 Apr 2025 · Verified 6 Jul 2026.
B, C Only
A,B Only
A, B, C Only
A, C Only
