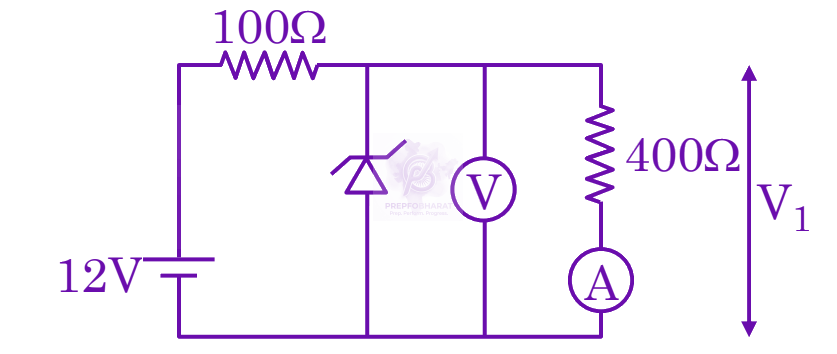

V1=100+400400×12 V=54×12=548 V
here, V1>Vz,(Vz= Zener Voltage ) So, Zener breakdown will be take place So, voltage across 400Ω will be 4 V
I=4004 A=100 A1=10 mA
In the following circuit, the reading of the ammeter will be (Take Zener breakdown voltage =4 ~V) JEE Main 2025 Physics, Semiconductors — question…
JEE Main 2025 — Physics Modern Physics
2025mcqmedium
In the following circuit, the reading of the ammeter will be (Take Zener breakdown voltage =4 V)
Official previous-year question
Held on 7 Apr 2025 · Verified 6 Jul 2026.
Options
- A
24 mA
- B
80 mA
- C
10 mA
- D
60 mA
