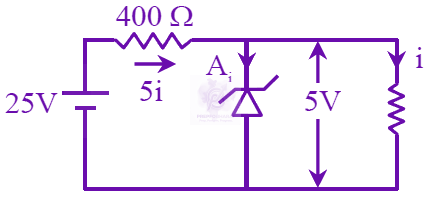

From the circuit diagram,
$\begin{aligned}
& 5 \mathrm{i}=\frac{20}{400}=\frac{1}{20} \mathrm{A} \
& \therefore \mathrm{i}=\frac{1}{100} \mathrm{A}=10 \mathrm{~mA}=\text { Load current }
\end{aligned}$
Also, VL=5 V
∴RL=10×10−35Ω=500Ω
A zener diode with 5 V zener voltage is used to regulate an unregulated dc voltage input of 25 V. For a 400Ω resistor connected in series, the zener current is found to be 4 times load current. The load current (IL) and load resistance (RL) are :
Held on 2 Apr 2025 · Verified 6 Jul 2026.
IL=20 mA;RL=250Ω
IL=10 A;RL=0.5Ω
IL=0.02 mA;RL=250Ω
IL=10 mA;RL=500Ω
Sign in to track your attempts and accuracy.
Sign in to keep a private note on this question. Nothing you write is ever public.
A voltage regulating circuit consisting of Zener diode, having break-down voltage of 10 V and maximum power dissipation of 0.4 W, is operated at 15 V. The approximate value of protective resistance in this circuit is $\_\_\_\_$ $\Omega$.
An atom ${ }_{3}^{8} X$ is bombarded by shower of fundamental particles and in 10 s this atom absorbed 10 electrons, 10 protons and 9 neutrons. The percentage growth in the surface area of the nucleons is recorded by:
In the hydrogen atom, the electron makes a transition from the higher orbit ($i$) to a lower orbit ($f$). The ratio of the radius of the orbits in given by $r_i : r_f = 16 : 4$. The wavelength of photon emitted due to this transition is _____ nm. (Given Rydberg constant $= 1.0973 \times 10^7$ /m)
The work function of a metal is 4.2 eV. The threshold wavelength for photoelectric emission is approximately:
